Product Details:
Payment & Shipping Terms:
|
| Channel: | 6 | Ecg Lead: | 12 |
|---|---|---|---|
| Screen: | 5 Inch Colour LCD | Suitable: | Adult & Child |
| Calibrating Voltage: | 1mV±2％ | Time Constant: | ≥3.2s |
| Highlight: | Handheld Ecg Monitor,3 Lead Ecg Monitoring |
||

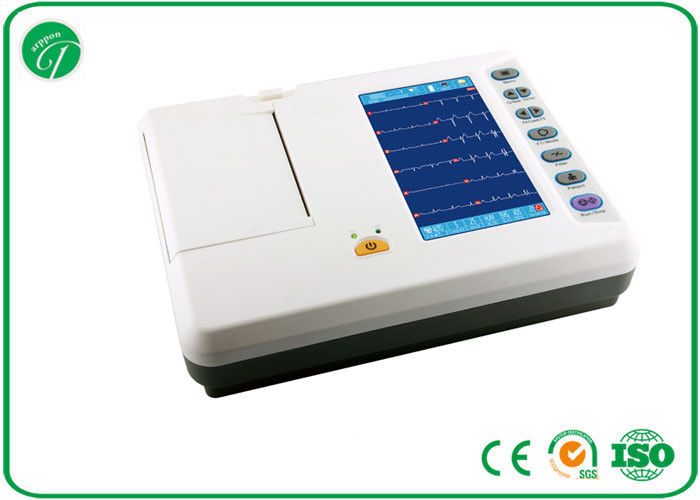

Color 12 lead 6 channel Electrocardiograph Portable ECG/EKG Machine with interpretation
1. Features
● Portable 6 channel ECG machine
● Working modes: Manual/Auto/Arrhythmia Analysis modes
● 112mm,3/6 channel format recording
● Built in rechargeable Li-ion battery
● Adaptor 110-230V, 50/60Hz AC power supply
● Real-time ECG waveform, 250 patients save/replay
● Built in USB/RS232 interface(ECGNET software Optional)
2. Technical Specification
● Lead: standard 12 leads
● Input dynamic range: ±10Vpp
● Patient current leakage: ＜10μA
● Calibrating voltage: 1mV±2％
● Voltage tolerance: ≥±500mV
● Time constant: ≥3.2s
● Frequency response: 0.05～160Hz(-3db)
● Noise level: ＜15μVp-p
● Input circuit current: ≤0.05μA
● Sensitivity: 2.5, 5,10, 20mm/mV
● Inter-channel interference: ≤0.5mm
● Paper speed: 6.25,12.5, 25,50mm/s(±3％)
● Patient current leakage: ＜10μA
● Filter:
AC filter : 50Hz / 60Hz
EMG filter : 25Hz / 45Hz
Anti-drift filter : 0.15Hz(Adaptive)
● CMMR: ≥120dB (with AC filter)
● Sensitivity valve: ≤20μV
● Input impedance: ≥50MΩ
● Work modes: MAN,AUTO,ANALYSIS Modes
● Lead acquisition12bit/1000Hz(synchronously 12 leads)
● Input circuit: floating; protection circuit against defibrillator effect
● Display: 7 inch LCD
3. Standard Configuration
● Patient cable 1 set
● Limb electrode 4 sets
● Chest electrodes 6 sets
● Grounding cable 1 set
● Paper axis 1 set
● Thermal paper 1 set
● Fuse 2 sets
● 3-cord power cord 1 set
● AC Adaptor
