Product Details:
Payment & Shipping Terms:
|
| Suitable: | Adult & Child | Drawer Unit: | ONE Drawer Totally Extractable |
|---|---|---|---|
| Safety Valve: | <12.5 KPa | Respiratory Rate: | 1~99bpm |
| Oxygen Flush:: | 25~75 L/min | Screen: | 5.7'' Display Screen |
| High Light: | Anesthesia Gas Machine,Ventilator Anesthesia Machine |
||

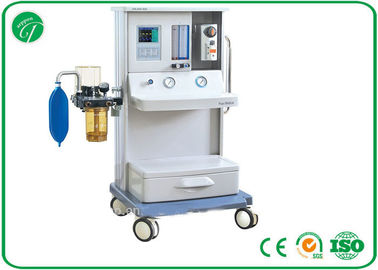

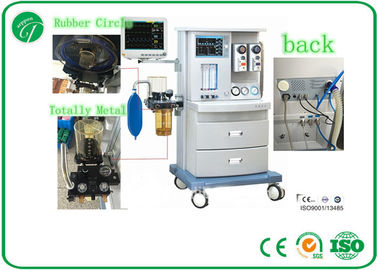

1 vaporizer Mobile Gas Anesthesia Machine ICU medical equipment with 5.7” LCD display screen
Prospective service and support This JINLING-820 Anesthesia Machine is equipped with an accurate dedicated anaesthetic vaporizer and a safety device for preventing cyanosis and necessary alarm system. During the anesthesia, the patient’s respiratory functions can be managed by using a microcomputer controlled pneumatic electrically controlled synchronizing anesthesia respirator. Each connection part of the whole machine is a standard interface. A highly efficient and large volume soda lime absorber can minimize the re-inhalation of carbon dioxide by the patient.
| Pneumatically driven electronically controlled system | |
| Built-in ventilator, 5.7” LCD display screen | |
| With 1 patient circuit for adult (Option: patient circuit for children). | |
| 4-tube flowmeters, O2 & N2O ; 0.1 L/Min ~ 10 L/Min; | |
| One vaporizer, Enflurane/Isoflurane/Sevoflurane; (Option: Halothane) | |
| Oxygen Flush: | 25~75 L/Min; |
| Respiration Mode: | IPPV, SIPPV(VCV), IMV, SIMV, PEEP, Manu, Sigh |
| Tidal Volume: | 50~1500 mL; |
| I:E: | 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0, 1:2.5, 1:3, 1:4; |
| Respiration Frequency: | 1~99bpm; |
| PEEP: | 1~10 hPa; |
| Ptr: | -10~10 hPa; |
| CO2 absorber capacity: | 1 kg |
| Lung compliance: | ≤ 30 mL/kPa; |
| IMV frequency: | 1~12bpm |
| Inspiratory Plateau: | 0~1S; |
| Alarm parameter: | upper /lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea, AC power malfunction, battery low power |
