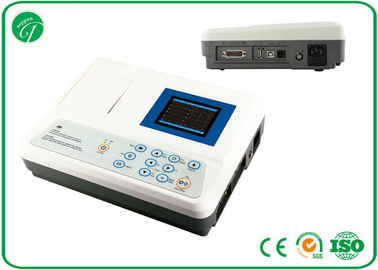

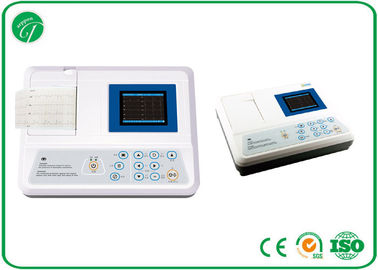

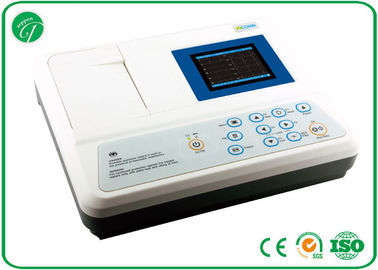

3.5 Inch Colour Lcd 3 Channel Portable 12 Lead Ecg Machine 100 Patient Save

3.5 Inch Colour Lcd 3 Channel Portable 12 Lead Ecg Machine 100 Patient Save

Features:

Display: 3.5 inch colour LCD:3.5" TFT Color LCD display shows the working status and ECG waveform.Check the waveform before printing to save record paper.

ECG waveform,100 patient save/replay: It has build-in storage with large capacity, and can memory more than 1000 cases, which is easy for the doctor review and statistic.

Technical Specification:

• Lead:standard 12 leads

• Calibrating voltage: 1mV±2％

• Voltage tolerance: ≥±500mV

• Time constant: ≥3.2s

• Frequency response: 0.05～160Hz(-3db)

• Noise level: <15μVp-p

• Sensitivity valve: ≤20μV

• Sensitivity: 2.5, 5, 10, 20mm/mV

• Inter-channel Interference: ≤0.5mm

• Paper speed: 6.25, 12.5, 25, 50mm/s(±3％)

• Input dynamic range:±10Vpp

• Filter: AC Filter : 50Hz / 60Hz ;EMG Filter : 25Hz / 45Hz;Anti-Drift Filter : 0.15Hz (Adaptive)

•  CMMR: ≥120dB (with AC filter)

• Input Impedance: ≥50MΩ

• Input circuit current: ≤0.05μA

• Patient current leakage: ＜10μA

• Lead acquisition: 12bit/1000Hz(synchronously 12 leads)

• Work modes: MAN,AUTO,ANALYSIS modes

• Input circuit: floating; protection circuit against defibrillator effect

• Display: 3.5 inch colour LCD

• ECG waveform,100 patient save/replay

​Filter:



Standard Configuration:

Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
