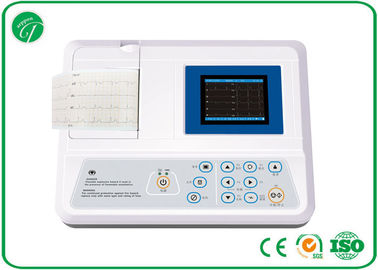

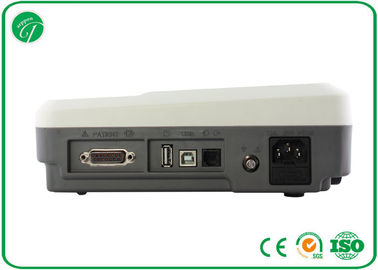

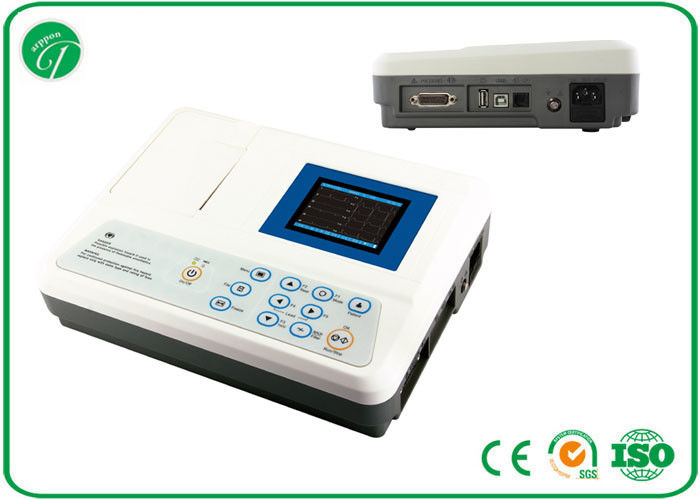

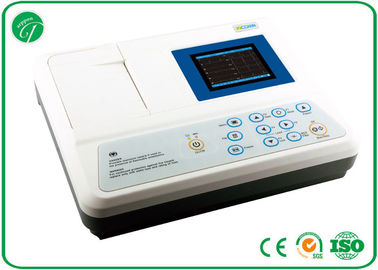

3 channel Portable ECG Machine , ecg monitoring device rechargeable lithium battery

3 channel Portable ECG Machine , ecg monitoring device rechargeable lithium battery

Features:

• 3.5" TFT Color LCD display shows the working status and ECG waveform.Check the waveform before printing to save record paper.
• 12 leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals
• Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc., to be easy for interpretation.
• Include multiform printing modes and format, such as auto 3*4 +1, auto 3*4,auto 2*6 +1, auto 2*6, auto 4*3, rhythm 4, rhythm 3, rhythm 2 and manual etc; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications.

Technical Specification:

• Safety Type Class I, Type CF applied part, which has defibrillation-proof applied part
• Lead Standard 12 leads
• input way: Floating and defibrillation protection
• Patient leak current <10µA
• Sampling rate 1000Hz
• A/D conversion 12bit
• Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
• time constant >3.2s
• CMRR >60dB, >100dB( Add filter)
• Enduring polarization voltage: ±500mV
• Noise level ≤15µVp-p
• EMG interference filter 25Hz/35Hz (-3dB)
• AC filter 50Hz/60Hz (≥20dB)
• Recording way Thermal printing system(8spots/mm)
• Recording paper 80mm(W)×20m(L)
• Sensitivity 5mm/mV 10mm/mV 20mm/mV 40mm/mV Auto
• Paper speed: Auto-mode: 25mm/s, 50mm/s;Rhythm-mode:25mm/s, 50mm/s;Manual-mode:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s
• Power supply: AC:220V,50Hz(110V ,60 Hz)
• DC: 7.4V, 3700 mAh rechargeable lithium battery
• Fuse Specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V(Power Supply:220V)
• Size: 315mm(L) x 215mm(W) x 77mm(H)
• Net Weight 2.25Kg

Filter:

AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR: ≥120dB (with AC filter)
Input Impedance: ≥50MΩ
Input circuit current: ≤0.05μA
Patient current leakage: <10μA
Lead acquisition: 12bit/1000Hz(synchronously 12 leads)
Work modes: MAN,AUTO,ANALYSIS modes
Input circuit: floating; protection circuit against defibrillator effect
Display: 5 inch colour LCD
ECG waveform,100 patient save/replay

Standard Configuration:

• Patient cable 1 set
• Limb electrode 4 sets
• Chest electrodes 6 sets
• Grounding cable 1 set
• Paper axis 1 set
• Thermal paper 1 set
• Fuse 2 sets
• 3-cord power cord 1 set
• AC Adaptor 1 set
