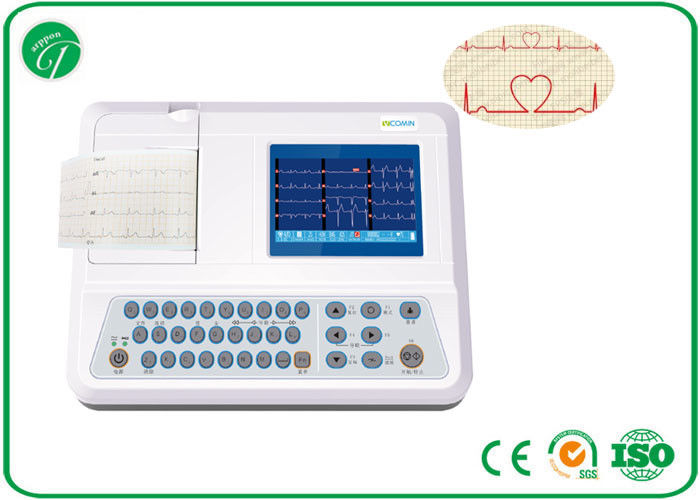

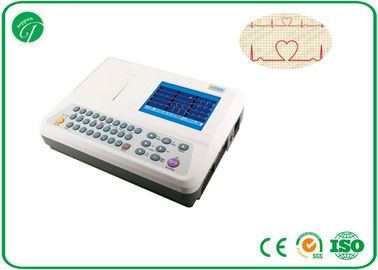

250 Patient save hospital ecg machine portable with 5 inch colour LCD

Large Image : 250 Patient save hospital ecg machine portable with 5 inch colour LCD

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	8033

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	6 work days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Contact Now

Detailed Product Description

Certificate:	CE	Input Impedance:	≥50MΩ
Weight:	2.8 Kg	Display Mode:	B+M
Lead:	Standard 12 Leads	Patient Current Leakage:	＜10μA
Highlight:	Portable Ecg Monitor , 3 Lead Ecg Monitoring

250 Patient save hospital ecg machine portable with 5 inch colour LCD

1. Features

Safety Type: Class I, Type CF applied part, which has defibrillation-proof applied part 3 channel ECG machine with interpretation
3 different modes for choose: Manual/Auto/Arrhythmia Analysis Modes,The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter provides measurement parameters such as HR, P-R interval, P Duration, QRS Duration, T Duration,Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) etc and auto-interpretation conclusion to help reducing doctor’s abundance and improve working efficiency.
80mm 3-ch recording with rhythm lead
Built in rechargeable Li-ion battery:This device includes built-in lithium
polymer rechargeable battery. It can standby for 4 hours, print 150 pieces
of ECG waveform and print 90 minutes continually under the best DC state
to satisfy the need of visiting patients and physical examination.
Adaptor 110-230V, 50/60Hz AC power supply:The power supply includes both AC/DC.
Built in USB/RS232 interface(ECGNET software Optional)

2. Technical Specification

Lead:standard 12 leads, 12 leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals
Support Chinese, English, Spanish and Turkish Operating interface, can print
out Chinese or English report
Option:ECG-Sync software, connect with the PC by USB connector to form a ECG workstation, collect real-time data to the software to analyze and print the report, and can update the old cases in the ECG machine to PC. It has optional functions of FCG, HFECG, QTd, HRV analysis etc.

Lead	standard 12 leads
Calibrating voltage	1mV±2%
Voltage tolerance	≥±500mV
Time constant	≥3.2s
Frequency response	0.05~160Hz(-3db)
Noise level	<15μVp-p
Sensitivity valve	≤20μV
Sensitivity	2.5, 5, 10, 20mm/mV
Inter-channel Interference	≤0.5mm
Paper speed	6.25, 12.5, 25, 50mm/s(±3%)
Input dynamic range	±10Vpp
AC Filter	50Hz / 60Hz
EMG Filter	25Hz / 45Hz
Anti-Drift Filter	0.15Hz (Adaptive)
CMMR	≥120dB (with AC filter)
Input Impedance	≥50MΩ
Input circuit current	≤0.05μA
Patient current leakage	<10μA
Lead acquisition	12bit/1000Hz(synchronously 12 leads)
Work modes	MAN,AUTO,ANALYSIS modes
Input circuit	floating; protection circuit against defibrillator effect
Display:	5 inch colour LCD

Filter:

Display: 3.5 inch colour LCD
ECG waveform,100 patient save/replay

AC Filter	50Hz / 60Hz
EMG Filter	25Hz / 45Hz
Anti-Drift Filter	0.15Hz (Adaptive)
CMMR	≥120dB (with AC filter)
Input Impedance	≥50MΩ
Input circuit current	≤0.05μA
Patient current leakage	<10μA
Lead acquisition	12bit/1000Hz(synchronously 12 leads)
Work modes	MAN,AUTO,ANALYSIS modes
Input circuit	floating; protection circuit against defibrillator effect

3. Standard Configuration

Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set

Patient cable	1 set
Limb electrode	4 sets
Chest elelctrodes	6 sets
Gounding cable	1 set
Paper axis	1 set
Thermal paper	1 set
Fuse	2 sets
3-cord power cord	1 set
AC Adaptor	1 set
