Product Details:
Payment & Shipping Terms:
|
| Rate: | 2~99bpm | SIMV Rate: | 2~20bpm |
|---|---|---|---|
| I:E: | 2:1~1:8 | Inspiratory Trigger Pressure: | 1.0~2.0 KPa |
| PEEP: | 0~2.0 KPa | Pressure Range: | 1.0~6.0 KPa |
| The Inspiratory Time: | SIGH 1.5 Times | Low Limit Setting Range: | 0.4~2.0 KPa |
| Highlight: | Anesthesia Gas Machine,Ventilator Anesthesia Machine |
||

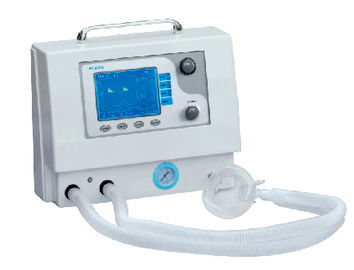

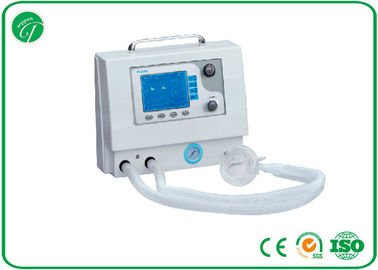

5.7” LCD screen display portable air ventilator icu ventilators Gas Anesthesia Machine
2000B Ventilator(portable type)
| Rate | 2~99bpm |
| SIMV rate | 2~20bpm |
| I:E | 2:1~1:8 |
| Inspiratory trigger pressure | 1.0~2.0 kPa |
| PEEP | 0~2.0 kPa |
| Pressure range | 1.0~6.0 kPa |
| the inspiratory time | SIGH 1.5 times |
| low limit setting range | 0.4~2.0 kPa |
| low limit setting range | 1.0~10L/min |
| Power | AC 220V±10% 50Hz±1Hz |
Display mode High-definition 5.7” LCD screen display
Ventilation mode IPPV, SIPPV, SIMV, MANUAL
Ventilation function PEEP,SIGH, IRV
Ventilation parameters Tidal volume 50~1500ml
Parameters for ventilation monitoring tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate,
I/E, peak pressure of airway,pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure
Security Alarm System
Airway pressure alarm upper limit setting range 1.0~6.0 kPa
Per-minute ventilation volume alarm upper limit setting range 3.0~30L/min
Sustained high-pressure alarm it will give alarm when stress have consistently
been higher than 2.5 kPa
Suffocation alarm it will give sound and light alarm if there is no
tidal volume input for 15 seconds
Power alarm
UPS, Storage battery
