3 Channel Portable ECG Machine , ECG Handheld Monitor Electrocardiograph Machine

CE FDA certified  Portable ecg machine 3 channels Electrocardiograph Price

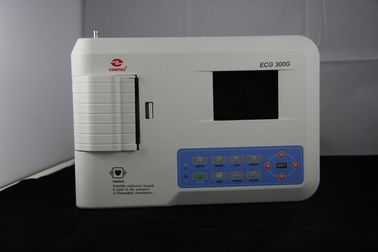

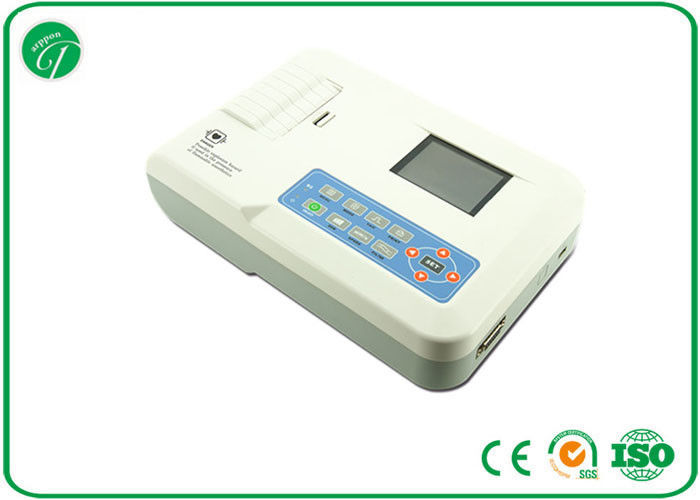

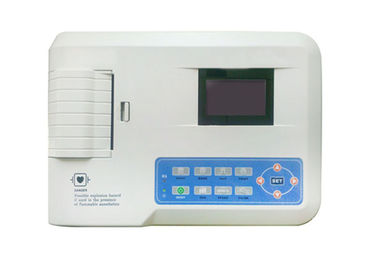

ECG300GA is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in: recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for "Lead off" or "Lack of paper", optional interface languages(Chinese/English), case database management.

Main Features

1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.

2)Display of 1/2/3-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.

3)Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements.

4)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.

5)Built-in memory stores up to 15 cases(optional SD card, store up to 50 cases), convenient for case review and statistic.

6)Two languages(Chinese or English) interface and report.

7)AC/DC, and in optimal DC state, built-in rechargeable lithium battery can continuously work for 8-hour, print up to 70-minute and 175-ECG, which meets the requirements of visiting a patient at home and body examination.
