Product Details:
Payment & Shipping Terms:
|
| Input Circuit: | Floating; Protection Against Defibrillator Effect | Lead: | Standard 12 Leads, Lead Change Automatically |
|---|---|---|---|
| Patient Current Leakage: | <10μA | Input Impedance: | ≥10ΜΩ |
| Calibrating Voltage: | 1mV±3% | A/D Conversion: | 12 Bit |
| High Light: | Portable Ecg Monitor,Handheld Ecg Monitor |
||

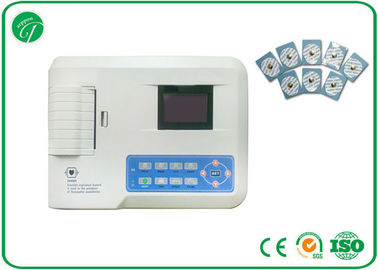

ECG100G Single Channel ECG Machine EKG monitor 12-lead EKG-CE FDA Approved
Introduction
ECG100G is a kind of single channel electrocardiograph, which features in printing ECG waveform by thermal printing system, prompting for "Lead off" or "Lack of paper", multi-language interface, recording ECG waveform in AUTO/Manual mode, convenient to operate.
Main Features
1)Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2)Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
3)Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).
4)In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
5)Multi-language (Chinese, English, French, Italian, German, Spanish and Turkish) interface and report.
6)In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 ECG waveform.
CERTIFICATEION : CE , ISO
Specifications
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
| CMRR | >80dB |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System | Thermal-array |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply | AC: 220V / 110V, 50/60Hz |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimensions | 310mm×230mm×70mm |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
Standard Configuration:
1SET * ECG machine

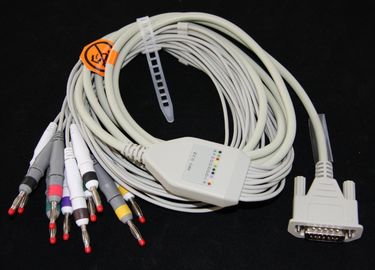

1 SET* Patient Cable
1 Piece* Power Cable
1 piece*Power charger
1 roll* Printing Paper

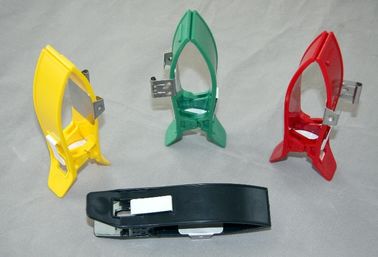

1 set * Limb Electrodes
(4pcs/set)
1 set* Chest Electrodes
(6pcs/set)
1copy* Operation Manual
