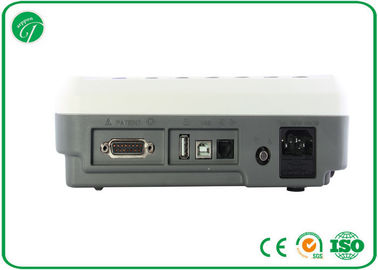

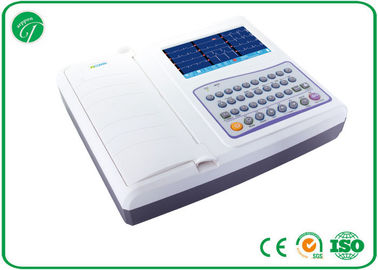

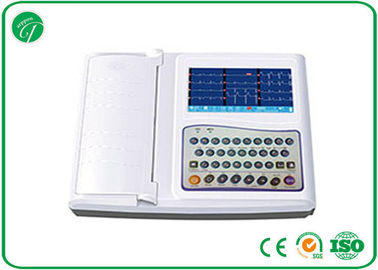

CE Digital 12 Channel Leads Portable ECG Machine WIth Thermal Printer , 1000Hz rate

Large Image : CE Digital 12 Channel Leads Portable ECG Machine WIth Thermal Printer , 1000Hz rate

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	ECG-8121

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	5-7 working days after payment
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	100 units per day

Contact Now

Detailed Product Description

Packing Size(cm):	413020	GM:	5KG
Display:	7 Inch LCD	Lead:	Standard 12 Leads
Work Mode:	MAN,AUTO,ANALYSIS Modes	Sampling Rate:	1000Hz
Highlight:	Portable Ecg Monitor , Handheld Ecg Monitor

CE Marked Digital 12 Channel 12 Leads ECG Machine WIth Thermal Printer

Features:

Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
7 inch colour LCD with Alphabet keyboard

Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)

Technical Specification:

Lead standard 12leads
Calibrating voltage: 1mV±2%
Voltage tolerance: ≥±500mV
Inter-channel interference:≤0.5mm
Frequency response: 0.05~160Hz(-3db)
Patient current leakage: <10μA
Noise level: <15μVp-p
Sensitivity valve: ≤20μV
Paper speed:6.25,12.5, 25,50mm/s(±3%)
Time constant: ≥3.2s
Input dynamic range: ±10Vpp
Filter:

AC flter: 50Hz / 60Hz

EMG filter: 25Hz / 45Hz

Anti-drift filter: 0.15Hz(Adaptive)

Sensitivity: 5,10,20mm/mV
CMMR: ≥120dB (with AC filter
Input impedance: ≥50MΩ
Input circuit current:≤0.05μA
Work mode: MAN,AUTO,ANALYSIS modes
Lead acquisition12bit/1000Hz(synchronously 12 leads)
Input circuit: floating; protection circuit against defibrillator effect

Standard Configuration:

Patient cable	1 set
Limb electrode	4 sets
Chest elelctrodes	6 sets
Gounding cable	1 set
Paper axis	1 set
Thermal paper	1 set
Fuse	2 sets
3-cord power cord	1 set
AC Adaptor	1 set
