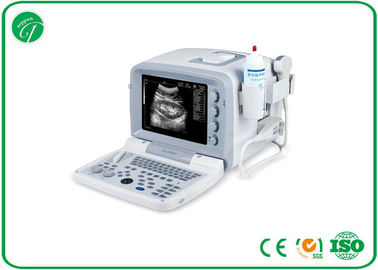

High Resolution CRT Monitor B Mode Ultrasound Scanner 10'' Multi - Language Ultrasonic Device

  Portable Full Digital B mode Ultrasound Scanner 10 inch Cheap Multi-language ultrasonic device​

Parameter

• Adopt ARM7 Embedded Control Systems , FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
• 10" high resolution CRT monitor, line by line scanning without sparkle.
• Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
• Double probe sockets, automatically identify the probe, support several optional probes.
• Body mark: 64 pcs of body marks with probe position.
• Display mode:B,2B,4B ,B/M,M, total 5 kinds.
• 10 grades depth adjustment, maximum display depth is 236mm.
• Gain range: 0~127dB
• Dynamic range: 27~90dB
• Gray : 256
• Intelligent TGC control: 8 grades.
• Frame frequency: 30 frames /second
• Pseudo-color: 8 kinds (incl. B/W).
• Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss when power off.
• Cineloop: 256 frames.
• Puncture guiding function,( 2 guiding lines, angel and position adjustable)
• Equipped with lithotripsy software, realize real-time positioning measurement.
• General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
• Obstetric measurement and analysis: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
• Gynecology measurement and analysis: gynecology general measurement and gynecology report.
• Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
• Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports.
• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
• Power supply: AC110/230-15% ~ + 10% (self-adaption supply voltage) 60/50 hz ± 1 hz
• Net weight:12kg；
• Main unit size: 387 x 319 x 270 mm (length x width x height)

Standard configuration:

• Main unit: 1 pc
• 10" high resolution CRT monitor.
• Double probe sockets, automatically identify probe technology.
• 3.5MHz multi-frequency abdomen convex probe: 1 pc

Optional configuration:

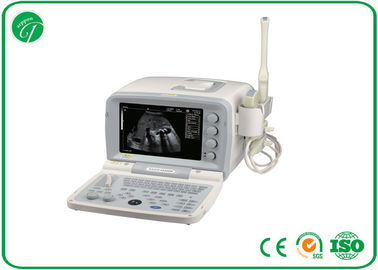

• 6.5MHz multi-frequency trans-vaginal probe
• 7.5MHz multi-frequency linear probe
• 5.0MHz multi-frequency micro-convex probe

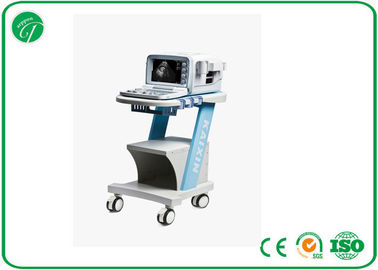

• Trolley

• Thermal printer (P93W-S)

• Color laser printer (Specified model:HP Color LaserJet CP1515n,HP Color LaserJet CP1525n)
• Color LCD monitor.
•
