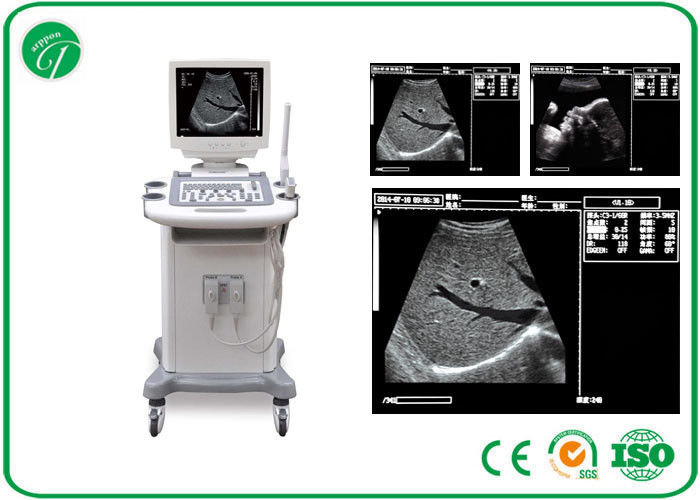

5 level Full Digital Trolley b mode ultrasonography , 14 Inch ultrasound imaging equipment

Large Image : 5 level Full Digital Trolley b mode ultrasonography , 14 Inch ultrasound imaging equipment

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018II

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units/ month

Contact Now

Detailed Product Description

Focal Space:	5 Level	Focus Position:	Focal Space 5 Level
Posture Mark:	≥40	Video Output:	PAL-D, VGA
Machine Dimension:	5168124 (cm)	Dynamic Range:	100dB-130dB
Scan Depth:	40mm-240mm	Image Storage:	32 Frames
Highlight:	Portable Ultrasound Scanner , Laptop Ultrasound Scanner

5 level Full Digital Trolley b mode ultrasonography , 14 Inch ultrasound imaging equipment

Features:

The system uses micro computer technology, Digital Scanning Converter (DSC), variable aperture,
multi-section dynamic focusing, high dynamic, low noise, wide band pre-amplifier, log compression, and TGC control, dynamic filtering, edge enhancement and frame correlation.
Those embedded components allow a clear, stable and high resolution image.
Power Supply: 100V~130V/220V~240V, 50/60Hz.

Specifications:

Probe			Standard	Optional
			3.5MHz convex probe	7.5MHz linear probe	6.5MHz trans-vaginal probe
Probe frequency			2.5Mhz,3.5Mhz, 5.0Mhz	6.5Mhz,7.5Mhz,8.5Mhz	5.5Mhz,6.5Mhz, 7.5Mhz
Display depth (mm)			240 (max),16 levels adjustable
Max detect depth (mm)			≥160	≥80	≥60
Resolution (mm)		Lateral	≤2 (depth≤80) ≤3 (80<depth≤130)	≤1 (depth≤60)	≤1 (depth≤40)
		Axial	≤2 (depth≤80) ≤3 (80<depth≤130)	≤1 (depth≤60)	≤1 (depth≤40)
Blind zone(mm)			≤5	≤3	≤7
Geometric position precision	Horizontal		≤15	≤5	≤10
	Vertical		≤10	≤5	≤5
Monitor size			14 inch
Display mode			B,B+B,B+M,M,4B
Image gray scale			256 level
Cine loop			809 frame (Max)
Image storage			32 frames
Scan angle			Adjustable
Scan depth			40mm-240mm
Acoustic power			2 steps
Dynamic range			100dB-130dB
Image flip			Up/down, left/right, black/white
Focus position			Adjustable
Focal space			5 level
Measurement			Distance, circumference, area, volume, heart rate. GA,FW,EDD and etc.
Notation			Date, time, name. sex, age, doctor, hospital name.Full screen words edit.
Output report			2 types
Posture mark			≥40
Video output			PAL-D, VGA
