Human B Mode ultrasonic scanning , Laptop pregnancy Ultrasound Scanner Handheld

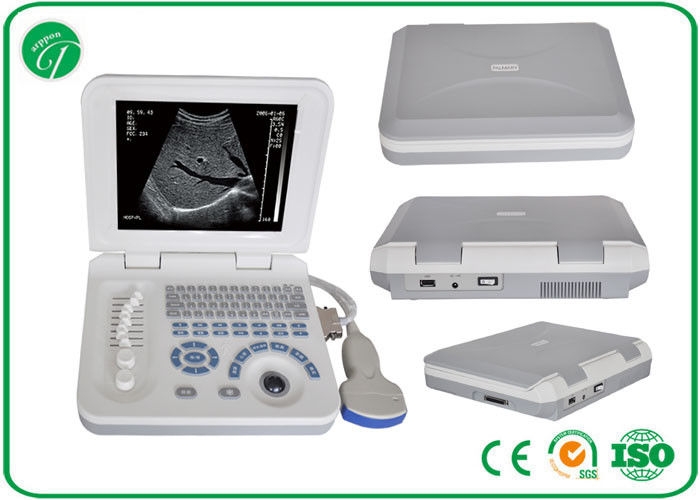

Large Image : Human B Mode ultrasonic scanning , Laptop pregnancy Ultrasound Scanner Handheld

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	700units/ month

Contact Now

Detailed Product Description

Display Mode:	B, B/B, 4B, B+M, M	Longitudinal Resolution:	≤ 1mm
Scanning Depth:	≥ 170mm	Body Marks:	64
Monitor:	10.4 Inch High-resolution	Grey Scale:	256
Geometric Position Accuracy:	Lateral ≤ 15%	Longitudinal:	≤10%
Highlight:	Portable Ultrasound Scanner , Laptop Ultrasound Scanner

Human B Mode ultrasonic scanning , Laptop pregnancy Ultrasound Scanner Handheld

Applications:

Diagnosis of liver, gallbladder, kidney, spleen, pancreas, heart, thyroid gland, breast, uterus, bladder, ovary, etc.
Clinical examination and diagnosis of abdomen and department of obstetrics and gynecology in the hospitals of county, rural-town and town.
Supervising stations of Planned Parenthood in the city, county, rural-town and town to be suitable for the examinations of early pregnancy, contraceptive ring, perinatal period of pregnant woman, etc.

Standard Configuration:

Main unit
3.5MHz convex probe
All accessories

Optional:

7.5MHz Linear probe
6.5MHz trans-vaginal probe
Video Printer (MITSUBISHI P93)

Specifications:

Display Mode: B, B/B, 4B, B+M, M;
Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0;
Scanning depth: ≥ 170mm;
Lateral resolution: ≤ 2mm (depth≤80mm), ≤ 3mm (80"depth≤130mm);
Longitudinal resolution: ≤ 1mm (depth≤80mm), ≤ 2mm (80"depth≤130mm);
Blind: ≤ 5mm;
Geometric position accuracy: lateral ≤ 15%;
Longitudinal: ≤10%;
Dynamic range: 0~120dB adjustable;
Monitor: 10.4 inch high-resolution;
Grey scale: 256;
Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, etc), expected date of confinement and so on;
Annotation: hospital name, patient’s name, gender and age, full-screen character annotation, real-time clock display;
Body marks: 64;
Puncture guide: displayed under B mode;
Gain control: 8 segments TGC and full gain can be adjusted respectively;
Image reverse: left/right, black/white, up/down;
Cine loop: 256;
Permanent storage: 128;
Image display: continuous playback, pieces of view Video;
Output: SVGA, PAL, video recorder, Image workstation and etc;
USB output;
Machine size(mm): 300(L)×245(W)×60(H);
Power: AC 220V±22V 50Hz;
Input power: ≤ 300VA;
Continuous work hours: ≥ 8h.

Display Mode	B, B/B, 4B, B+M, M;
Magnification	×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0;
Scanning depth	≥ 170mm;
Lateral resolution	≤ 2mm (depth≤80mm), ≤ 3mm (80"depth≤130mm);
Longitudinal resolution	≤ 1mm (depth≤80mm), ≤ 2mm (80"depth≤130mm)
Blind	≤ 5mm
Geometric position accuracy	lateral ≤ 15%;
Longitudinal	≤10%;
Dynamic range	0~120dB adjustable;
Monitor	10.4 inch high-resolution;
Grey scale	256;
Body marks	64;
Puncture guide	displayed under B mode;
Gain control	8 segments TGC and full gain can be adjusted respectively;
Image reverse	left/right, black/white, up/down;
Cine loop	256;
Permanent storage	128;
Image display	continuous playback, pieces of view Video;
Machine size(mm)	300(L)×245(W)×60(H);
Power	AC 220V±22V 50Hz;
Input power	≤ 300VA;
Continuous work hours	≥ 8h.
