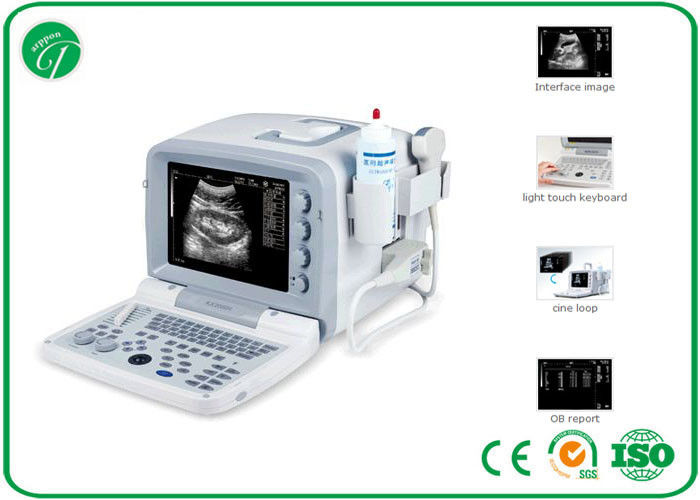

10" Double probe sockes B Mode Ultrasound Scanner progressive scanning

10" Double probe sockes B Mode Ultrasound Scanner progressive scanning

Features:

• 10" high resolution CRT monitor, progressive scanning without sparkle.
• Double probe sockets, support several optional probes.
• Menu operation, support 5 customized languages: English, Spanish, Russian, French, and Portuguese.
• 10 grades depth adjstment, maximum display depth is 236mm.
• 100 frames permanent storage, 256 frames cine loop.
• Light touch keyboard, photoelectric trackball and encoder, easy to operate.
• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
• General measurement:distance,perimeter, area , volume, heart rate, GA, EFW, EDD.
• Obstetric measurement and analysis: 15 kind of obstetric tables, LMP input, etc. several GA measurements, amniotic fluid index, fetal growth curve and OB report.

Parameter:

• Adopt ARM7 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
• 10" high resolution CRT monitor, line by line scanning without sparkle.
• Menu operation, support 5 customized languages: English, Spanish, Russian, French, and Portuguese.
• Double probe sockets, automatically identify the probe, support several optional probes.
• Body mark: 64 pcs of body marks with probe position.
• Display mode:B,2B,4B ,B/M,M, total 5 kinds.
• 10 grades depth adjustment, maximum display depth is 236mm.
• Gain range: 0~127dB.
• Dynamic range: 27~90dB.
• Gray:256.
• Intelligent TGC control: 8 grades.
• Frame frequency: 30 frames /second.
• Pseudo-color: 8 kinds (incl. B/W).
• Equipped with lithotripsy software, realize real-time positioning measurement.
• General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
• Obstetric measurement and analysis: 15 kind of obstetric tables, LMP input, etc. several GA measurements, amniotic fluid index, fetal growth curve and OB report.
• Gynecology measurement and analysis: gynecology general measurement and gynecology report.
• Urology measurement and analysis: residual urine volume, prostate volume, and urology report.
• Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports.
• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
• Power supply: AC110/230-15% ~ + 10% (self-adaptation supply voltage) 60/50 hz ± 1 hz.
• Net weight:12kg.
• Main unit size: 387 x 319 x 270 mm (length x width x height).

Standard configuration:

• Main unit: 1 pc.
• 10" high resolution CRT monitor.
• Double probe sockets, automatically identify probe technology.
• 3.5MHz multi-frequency abdomen convex probe: 1 pc.

Optional configuration:

• Optional probes

  6.5MHz multi-frequency trans-vaginal probe

  6.5MHz multi-frequency micro-convex pediatrics probe

  7.5MHz multi-frequency high linear probe

• Trolley
• Thermal printer (P93W-S)
• Color LCD monitor
