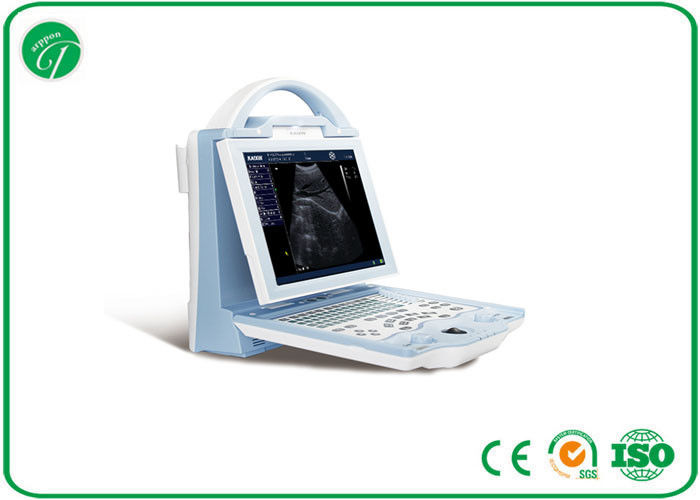

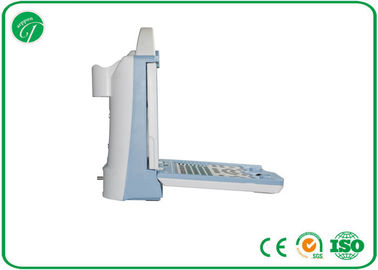

10.4'' Wide Angle Portable Doppler Ultrasound , High Resolution Ultrasound Imaging Equipment

                 10.4 inch 4.5kg B Mode Ultrasound Scanner with 4G hard disk for hospital

Tech Parameters:

• 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle；
• Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
• Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese；

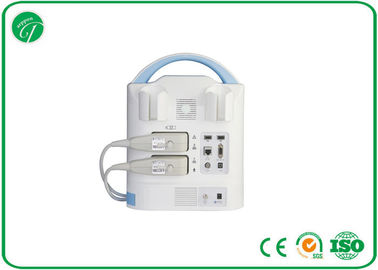

• Two probe sockets, auto-identify different optional probe；
• Body marks:total 64 kinds body marks indicating probe position；
• Image storage: 4G hard disk to permanently store about 5000 frames images；without loss when power off.
• Cine loop:256 frames；
• Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)；
• the gravel software package with real-time position line measurement
• Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
• Cardio measurement:Depth, slope, heart rate, cycle；
• Gynecology measurement and analysis: gynecology general measurement and gynecology report.
• OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
• Urology measurement and analysis: residual urine volumem, prostate volume, and urology report .
• One-key store: concise and practical;
• One-key review:fast, practical image review function;
• One-key Print；
• One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
• Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station)；
• Unique One-key-light keyboard function for black room use;
• Display brightness adjustable；

Main basic configuration:

• Main unit 1pc；
• 3.5MHz convex probe 1pc；
• Power supply adaptor 1pc；
• Reticle 1pc;
• Two probe sockets

Optional parts:

• Optional probes

6.5MHz multi-frequency trans-vaginal probe(through vagina)

6.5MHz micro-convex probe for small animals

7.5MHz multi-frequency linear probe

7.5MHz multi-frequency cavity probe (through anus)

• Battery charger
• Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
• trolley
• Video printer(UP-897MD)
• Ethernet Switch
