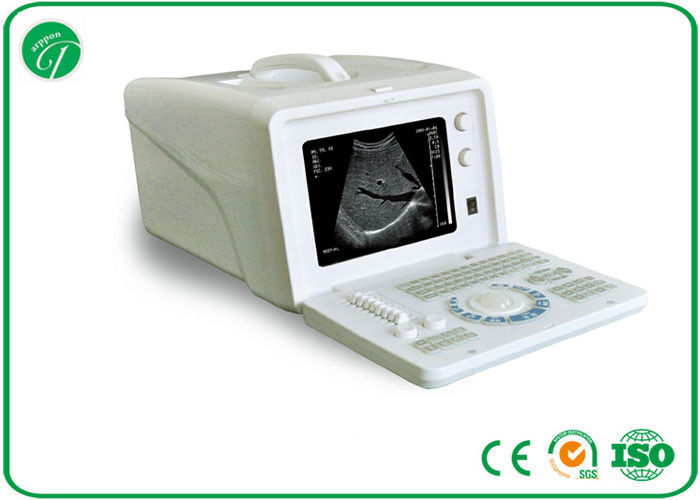

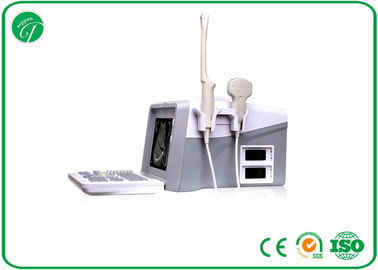

8 Segment TGC Real - Time B Mode Ultrasound Scanner OB Measurement ​Stable Screen

Standard configurations:

1. Main unit
2. 3.5Mhz convex probe
3. All accessories

Optional

1. 7.5Mhz linear probe
2. 6.5Mhz trans-vaginal probe
3. MITSUBISHI P93 thermal video printer


Specifications

1. Monitor size: 10 inch SVGA high resolution monitor;
2. Display mode: B; B+B; B+M; M;
3. Image magnification: ×0.8, ×1.0,×1.2,×1.5,×2.0;
4. Image grey: 256;
5. Dynamic range: 0-120DB;
6. Image permanent storage: 128;

v Cine loop: ≥256 frames;

1. Scan depth: ≥220mm;

v Image flip : Up/down, left/right, black/white;

v Focus position: Dynamic digital electronic focus point by point;

v Posture mark: 64, with probe position.;

v Puncture guide: B-mode image having a puncture guide line display;

1. Gain Control: 8-segment TGC, respectively, total gain is adjustable;

v Image process: Histogram, image smooth, pseudo-color, gamma correction;

1. Probe frequency: Adjustable;
2. Measurement: Distance, circumference, area, volume, heart rate, Gestational age(BPD,GS,CRL,FL,HC,OFD,TTD,AC), due date, fetal weight;

v Notation: Date, time, name, sex, age, full screen words edit and etc;

v Output port: USB, SVGA, PAL video output, can be connected with the PAL monitor, video recorder, image workstations;

1. N.W: 7kg (including probe).
