Fully Digital B Mode Ultrasound Scanner Intelligent TGC Control For Pregnancy

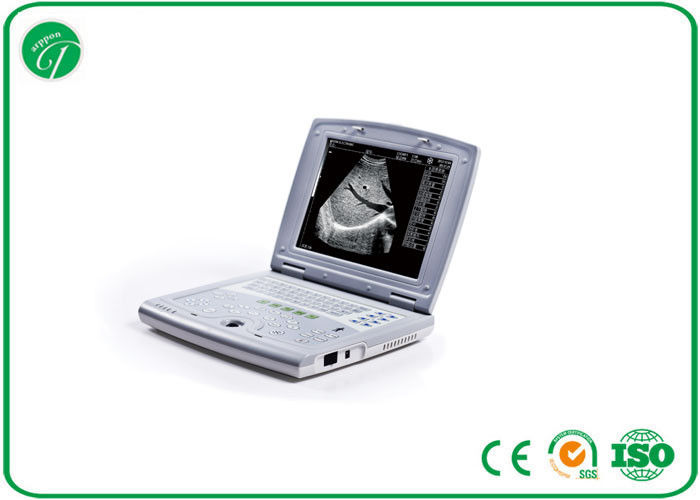

: Large Image : Fully Digital B Mode Ultrasound Scanner Intelligent TGC Control For Pregnancy

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	KX5000

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100units/ month

Contact Now

Detailed Product Description

Display Mode:	B,2B,4B ,B/M,M, Total 5 Kinds.	Magnification:	10 Kinds Of Magnification, Maximum Display Depth Is 240mm.
Gain Range:	0~127dB.	Dynamic Range:	27~90dB.
Gray:	256	Intelligent TGC Control:	Near-field And Far-field Adjustment.
Focus:	Adjustable And Intelligent Focus.	Frame Frequency:	30 Frames/second.
Pseudo-color:	8 Kinds (incl. B/W).	Permanent Image Storage:	100 Frames.
High Light:	Portable Ultrasound Scanner , Laptop Ultrasound Scanner

CE approved B mode Fully Digital Portable Droppler Ultrasound Scan Machine /scanner for pregnancy

1, Laptop, slim design, smart and light, easy to carry, convenient for examining.
2, 10.4 inch High resolution color LED monitor, high brightness, high contrast, wide visual, image clear and exquisite.
3, Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
4, OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
5, Automatically calculate backfat and lean percentage of swine.
6, 100 frames permanent storage, 256 frames cine loop.
7, Eight pseudo colors (incl.B/W).
8, Light touch keyboard, trackball and encoder, easy operation for doctor.
9, High speed USB port support high-capacity USB disk, and support the color laser printer print out all kinds of image and reports which make the output of diagnosis more convenient and simple.
10, Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
11, Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.

PARAMETER

1, Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
2, Single probe socket, automatically identify the probe, support several optional probes.
3, Body mark: 1. general cardiac 2.bovine 3.canine 4.equine 5.feline 6.cadioloy, 7.swine---7 kinds, total 27 pcs for body marks with probe position.
4, Display mode: B,2B,4B ,B/M,M, total 5 kinds.
5, 10 kinds of Magnification, maximum display depth is 240mm.
6, Gain range: 0~127dB.
7, Dynamic range: 27~90dB.
8, Gray: 256.
9, Intelligent TGC control: near-field and far-field adjustment.

10, Adjustable and intelligent focus.
11, Frame frequency: 30 frames/second.
12, Pseudo-color: 8 kinds (incl. B/W).
13, Permanent image storage: 100 frames.
14, Cine loop: 256 frames.
15, Puncture guiding function(2 guiding lines,angle and position adjustable).
16, General measurement:distance,Perimeter, area (tracing method, ellipse method), volume, angle histogram, sectional view, Stenosis rate, etc.
17, Cardiac measurements: depth, slope, heart rate, time.

Standard configuration:

·Main unit: 1 pc.
·6.5MHz linear rectal probe : 1 pc
·Power adapter: 1 pc
·Lithium battery : 2 pcs
·Metal case: 1pc
·Battery Charger:1pc

Features :

Body mark	1. general cardiac 2.bovine 3.canine 4.equine 5.feline 6.cadioloy, 7.swine---7 kinds, total 27 pcs for body marks with probe position.
Display mode	B,2B,4B ,B/M,M, total 5 kinds.
Magnification	10 kinds of Magnification, maximum display depth is 240mm.
Gain range	0~127dB.
Dynamic range	27~90dB.
Gray	256
Intelligent TGC control	near-field and far-field adjustment.
focus	Adjustable and intelligent focus.
Frame frequency	30 frames/second.
Pseudo-color	8 kinds (incl. B/W).
Permanent image storage	100 frames.
Cine loop	256 frames.
Puncture guiding function	2 guiding lines,angle and position adjustable
General measurement	distance,Perimeter, area (tracing method, ellipse method), volume, angle histogram, sectional view, Stenosis rate, etc.
Cardiac measurements	depth, slope, heart rate, time.
quick measurement	6 kinds grid setting for quick measurement
report function	OB report function
Adapter rating	100-240V~,50-60Hz,70VA
Output of adapter	DC12V 3.0A. Maom device rating:DC12V 3.0A. .
Battery	high-capacity lithium Battery(2700mAh) ,more than 200 minutes work.
Net weight	2.2kg.
Main unit size	290x245x48mm(length x width x thickness).
Main unit	1 pc.
6.5MHz linear rectal probe	1 pc
