Real Time Shift B Mode Ultrasound Scanner Large Screen Monitor Soft Keyboard

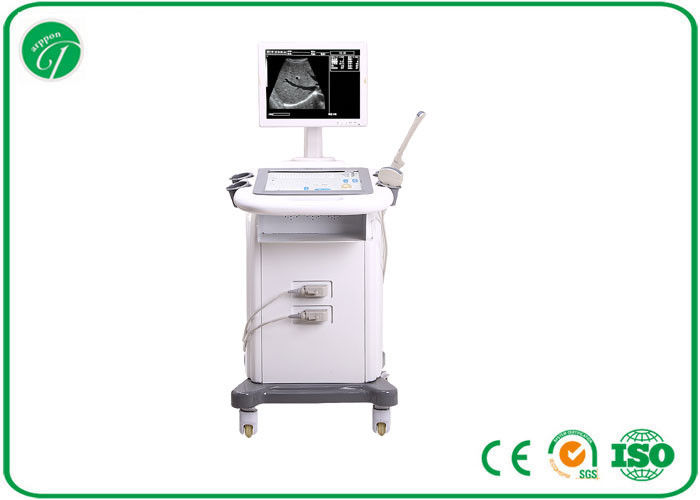

Large Image : Real Time Shift B Mode Ultrasound Scanner Large Screen Monitor Soft Keyboard

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	2018CII

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100units/ month

Contact Now

Detailed Product Description

Type:	Portable Ultrasonic Diagnostic Devices	Monitor Size:	10 Inch SVGA
N.W:	7kg (including Probe)	Display Mode:	B; B+B; B+M; M
Image Permanent Storage:	128	Image Grey:	256
Model Number:	2018CII	Scan Depth:	≥220mm
Warranty:	1 Year	Cine Loop:	≥256 Frames
High Light:	Portable Ultrasound Scanner , Laptop Ultrasound Scanner

High resolution trolley color doppler ultrasound machine/ Portable ultrasound 2018CII

Applicable range:
The device is applicable for hospitals and clinics for examining liver, GB, spleen, kidney, pancreas, heart, bladder, uterus, etc. with the human being configurations, as well as for veterinary use with the veterinary configurations.

Features:
- Display mode: B, B+B, B+M, M. Gray scale resolution: 256 scales.
- The image can be displayed in real time, frozen, amplified, black- white reversed, up and down conversed and shift depth in real time.
- Video output is standard PAL and VGA; it is easily accessed to the equipment, such as the large screen monitor, videocassette recorder, video image printer, etc.
- Soft keyboard and track ball to make operation faster, convenient and flexible.
- The device istrolleystructured with plastic cover. Switch power is used without working frequency transformer. FPGA and SMT in the device make the device high integrated, small volume and light weight.
- The device passed clinical verifications of safety and diagnosis validity in its manufacturing country.
- Chinese-English conversation.

Standard configurations:
v Main Unit
v 3.5Mhz convex probe
v All accessories

Optional:
v 6.5Mhz trans-virginal probe
v 7.5Mhz linear probe
v Video printer

Specifications:

Monitor screen	14 inch;
Display mode	B, B+B, B+M, M;
Image gray scales	256;
Cine-loop	186 or 236 frames;
Image storage	20 frames;
Magnification	x1.0, x1.2, x1.5, x2.0;
Display Depth (mm)	≥220;
Dead Zone (mm)	≤5;
Depth shift	B, B+B modes real time shift;
Electronical focusing	4 focuses combination randomly;
Image reverse	Left/right, black/white, up/down;
Local Zoom	2 times;
Powder supply	100V-130V/220V-240V, 50/60Hz.
Net Weight	23kg.
