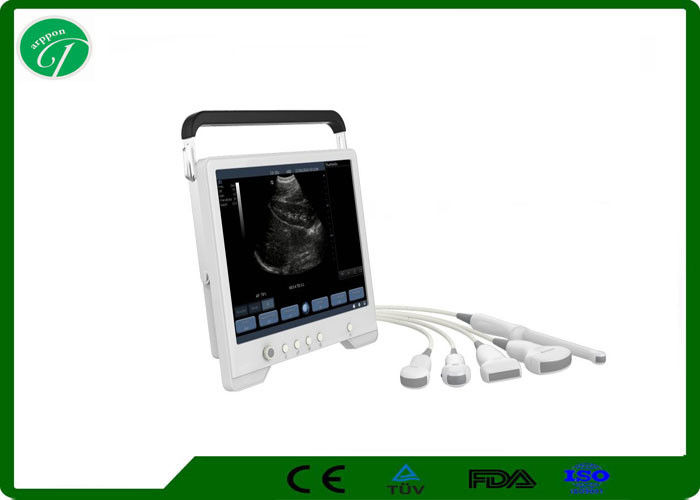

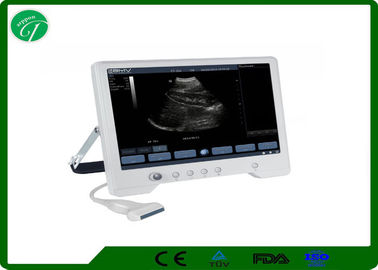

Notebook Laptop Ultrasound Scanner Wide - Angle 15 Inch Screen Portable Ultrasound Machine

Large Image : Notebook Laptop Ultrasound Scanner Wide - Angle 15 Inch Screen Portable Ultrasound Machine

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	TS20

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100units/ month

Contact Now

Detailed Product Description

B&W Mode:	B,M,2B,B/M,4B	Gray Sacle:	256
Display:	15"LCD Monitor	Transducer Frequency:	2-11Mhz
Digital Technology:	Wide-angle Imaging	Scanning Depth:	300mm
Pre-processing:	Cloud Processing Technology	Gross Weight:	Approximately 5.0kg
Power Supply:	AC 100-240V 50/60HZ <80VA	M Mode:	Distance, Time, Slope, HR
High Light:	B Mode Ultrasound , Laptop Ultrasound Scanner

15'' LCD monitor TOUCH SCAN 20 B/W Ultrasound Machine with Multi-frequency probes

Technical Specification

B&W mode	B,M,2B,B/M,4B
Display	15”LCD monitor
Transducer frequency	2-11Mhz
Digital technology	Wide-angle imaging
Scanning depth	300mm
Pre-processing	Cloud processing technology
Post-processing	Image enhancement
Cine-loop	334 frame cine loop memory
USB ports	2
Zoom	Pan zoom
THI	Tissue Harmonic Imaging
Qopt	Optimize
DICOM 3.0	DICOM 3.0
B mode	Distance, angle, area, volume, trace length, distance ratio
M mode	Distance, time, slope, HR
Software packages	Abdomen, OB, gynecology, small Part
Transducer connector	2 active transducer connector ports
Peripheral ports	Video,2 USB ports,1 networking port,1 power inlet,1 equipotential
Power supply	AC 100-240V 50/60HZ <80VA
Dimensions(main unit)	358mm(W)´366mm (L)´65mm (H)
Packing dimensions	378mm(W)´376mm(L)´85mm(H)
Net weight	Approximately 3.0kg
Gross weight	Approximately 5.0kg

Multi-frequency probes
3.5 MHz convex probe
Application:
Abdomen,GYN,OB
7.5 MHz linear probe
Application:
Vascular,Small Parts
6.5 MHz trans-vaginal probe
Application:
Vaginal
5.0 MHz micro-convex probe
Application:
Cardiac
Standard Configurations
Q3 B/W main unit
15”LCD with high resolution: 1024*768
Two USB ports
One composite video signal output
One networking port
One power inlet
One equipotential terminal
Two transducer connectors
Plenty of measurement&calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
Optional
3.5 MHz convex probe
7.5 MHz linear probe
6.5 MHz trans-vaginal probe
5.0 MHz micro-convex probe
