Adjustable Trolley Ultrasound Scanner , Handheld Ultrasound Scanner Thermal Video Printer

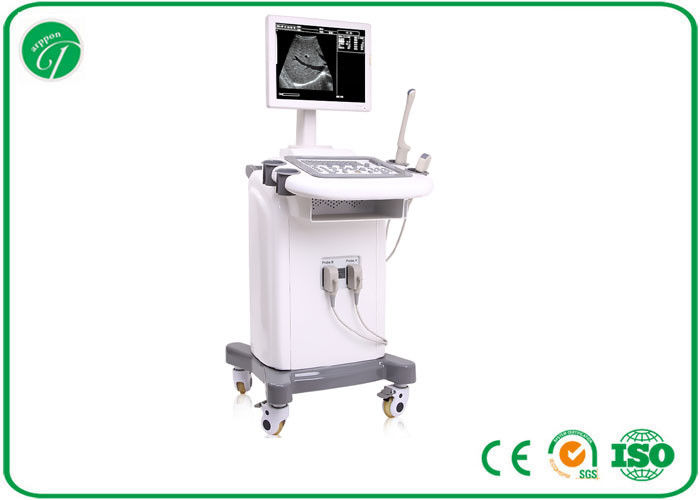

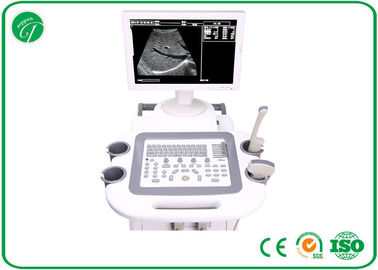

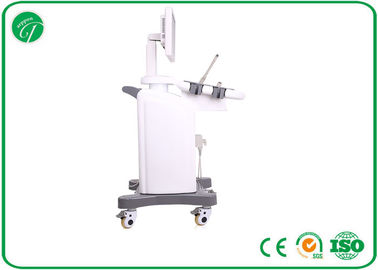

Large Image : Adjustable Trolley Ultrasound Scanner , Handheld Ultrasound Scanner Thermal Video Printer

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018II

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100units/ month

Contact Now

Detailed Product Description

Type:	Portable Ultrasonic Diagnostic Devices	Probe:	3.5MHz Convex Probe
Probe Frequency:	2.5Mhz,3.5Mhz, 5.0Mhz	Display Depth:	240 (max),16 Levels Adjustable
Monitor Size:	14 Inch	Display Mode:	B、B+B、B+M、M、4B
Model Number:	3018II	Image Gray Scale:	256 Level
Warranty:	1 Year
High Light:	Portable Ultrasound Scanner , Laptop Ultrasound Scanner

Full Digital trolley B Mode ultrasound machine Handheld Ultrasound Scanner/ 3.5MHz convex probe

Features:

The system uses micro computer technology, Digital Scanning Converter (DSC), variable aperture,
multi-section dynamic focusing, high dynamic, low noise, wide band pre-amplifier, log compression, and TGC control, dynamic filtering, edge enhancement and frame correlation.
Those embedded components allow a clear, stable and high resolution image.
Power Supply: 100V~130V/220V~240V, 50/60Hz.

Specifications:

Probe			Standard	Optional
			3.5MHz convex probe	7.5MHz linear probe	6.5MHz trans-vaginal probe
Probe frequency			2.5Mhz,3.5Mhz, 5.0Mhz	6.5Mhz,7.5Mhz,8.5Mhz	5.5Mhz,6.5Mhz, 7.5Mhz
Display depth (mm)			240 (max),16 levels adjustable
Max detect depth (mm)			≥160	≥80	≥60
Resolution (mm)		Lateral	≤2 (depth≤80) ≤3 (80<depth≤130)	≤1 (depth≤60)	≤1 (depth≤40)
		Axial	≤2 (depth≤80) ≤3 (80<depth≤130)	≤1 (depth≤60)	≤1 (depth≤40)
Blind zone(mm)			≤5	≤3	≤7
Geometric position precision	Horizontal		≤15	≤5	≤10
	Vertical		≤10	≤5	≤5
Monitor size			14 inch
Display mode			B,B+B,B+M,M,4B
Image gray scale			256 level
Cine loop			809 frame (Max)
Image storage			32 frames
Scan angle			Adjustable
Scan depth			40mm-240mm
Acoustic power			2 steps
Dynamic range			100dB-130dB
Image flip			Up/down, left/right, black/white
Focus position			Adjustable
Focal space			5 level
Measurement			Distance, circumference, area, volume, heart rate. GA,FW,EDD and etc.
Notation			Date, time, name. sex, age, doctor, hospital name.Full screen words edit.
Output report			2 types
Posture mark			≥40
Video output			PAL-D, VGA

Standard configurations:
.Scanner Body:1pc
.3.5Mhz Convex Probe: 1pc
.Charger with a Set of wires: 1set
.Bottle of USG gel: 1pc
.User Manual: 1pc

Optional:
.7.5Mhz Linear Probe
.6.5Mhz Trans-vaginal Probe
.5.0Mhz Micro-convex Probe
.Thermal Video Printer
