Handheld B Mode Ultrasound Scanner 5.0" TFT / LCD With High Resolution

Large Image : Handheld B Mode Ultrasound Scanner 5.0" TFT / LCD With High Resolution

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018I

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100units/ month

Contact Now

Detailed Product Description

Longitudinal Resolution:	≤ 1mm	Brand Name:	Darppon
Scanning Depth:	≥ 170mm	Blind:	≤ 5mm
Monitor:	10.4 Inch High-resolution	Body Marks:	64
Model Number:	3018I	Display Mode:	B, B/B, 4B, B+M, M
Lateral Resolution:	≤ 2mm	Geometric Position Accuracy:	Lateral ≤ 15%
High Light:	Portable Ultrasound Scanner , Laptop Ultrasound Scanner

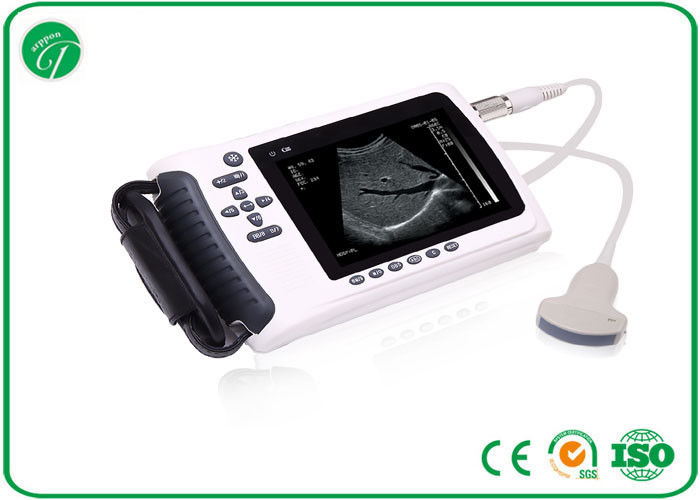

Handheld 5.0" TFT-LCD Ultrasound Scanner weight only 700G

Brief introduction:

-This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment.
-It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA),
-real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS),
-frame correlation technologies to endue its image with clarity, stability and high resolution.

Specifications:

Resolution(mm): Lateral, ≤3(depth≤80), ≤5(80＜depth≤130); Axial, ≤3(depth≤80)
Image process: histogram, color encode, gama, image smooth
Measurement: distance, circumference, area, volume, heart rate, gestation age, EDD
Notation: date, time, name, sex, age, full screen words edit and etc.
Output report: measurement
Output: USB2.0, VIDEO( PALD, NTSC)
Machine size: 230mm(L) x 120mm(W) x 38mm(H)
N.W: 700G
Battery continuous work: ≥3 hours

Displayed Depth(mm)	192
Detect depth(mm)	≥80
Blind zone(mm)	≤6
Geometric position precision	Horizontal≤7.5; Vertical≤5
Monitor size	5.0” TFT-LCD
Display mode	B, B+B, B+M, M, 4B
Image storage	128
Image gray scale	256
Scan depth	70mm-140mm
Cine loop	≥400 frame
Posture mark	16
Focus position	adjustable
Probe frequency	adjustable (3 point each probe)
Frame correction	adjustable
Image flip	up/down, left/right
