Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Darppon | Scanning Depth: | ≥ 170mm |
|---|---|---|---|
| Blind: | ≤ 5mm | Monitor: | 5.6 Inch High-resolution |
| Body Marks: | 64 | Display Mode: | B, B/B, 4B, B+M, M |
| Weight: | 625g | Volume: | 250x120x40 Mm |
| Highlight: | Portable Ultrasound Scanner,B Mode Ultrasound |
||
Light Weight B Mode Ultrasound Scanner Up / Down Reversal For Medical / Clinical Diagnosis

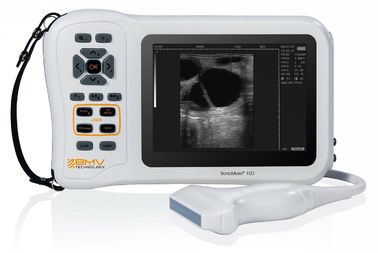

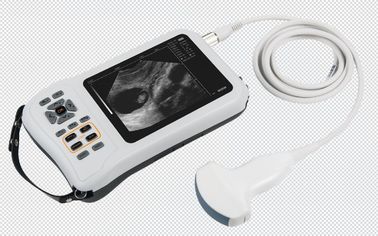

Sonomaxx100 is a handcart -type digital ultrasound diagnostic scanner, Sonomaxx100 is composed of main unit, monitor, ultrasound probe and related parts. The scanner adopts advanced beam forming and image processing technologies. The scanner software supports B-mode, M-mode, B/B-mode, 4B-mode,B/M-mode, M-mode imaging, measurements, markers,annotations , reports, image storage and management, biopsy guideline function and so on.

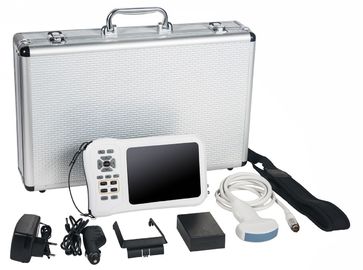

The product is composed of the main set, monitor, ultrasound probe.
This instrument is applicable to medical and clinical diagnosis
The system application software and control panel overlays support English and Chinese,other languages such as Russian, Spanish, French, German, etc. can be tailored according to customer demand(usually need a period of 15 working days)
Probe is the application of the system. The one probe can be connected to the ultrasound imaging system.
| Model | Type | Description | Configuration |
| 35C60H | Convex array | with a center frequency of 3.5MHz R=50mm | Standard |
| 75L50S | Liner array | with a center frequency of 7.5MHz L=50mm | Optional |
Note: This setup is only intended for doctors or professionals, or used under the guidance
of doctors.
The Sonomaxx100 digital ultrasound diagnostic system supports the following applications:
l Abdominal
l Obstetrics
l Gynecological
l Urological
l Small parts
l Orthopedics
l Vascular
| Measurement items | Gestational Age Table | Measurement methods |
| GS gestational sac | Tokyo,Hellman, Rempen,Hansmann,China | Line distance measurement |
| Crown- rump Length (CRL) | Tokyo,Hadlock,Nelson,Robinson,Rem- pen,Hansmann,Osaka,China | Line distance measurement |
| BPD | Tokyo,Hadlock,Jeanty,Kurtz,Merz,Hans- mann,Rempen,Chitty(O-I), Osaka,China | Line distance measurement |
| FL | Tokyo,Hadlock,Jeanty,Hohler,Merz,Hans- mann,Chitty,Osaka,China | Line distance measurement |
| HUM | Jeanty,Merz | Line distance measurement |
| HC | Hadlock,Merz ,Hansmann,Chitty(pltd) | Ellipsometry Measurement |
| AC | Hadlock,Merz | Ellipsometry Measurement |
| OFD | Hansmann | Ellipsometry Measurement |
| FTA | Osaka | Ellipsometry Measurement |
| FT | Mercer | Line distance measurement |
| CER | Hill | Line distance measurement |
| TTD | For the calculation of fetal weight | Line distance measurement |
| APTD | For the calculation of fetal weight | Line distance measurement |
|
Scanning |
Electronic linear array & electronic convex array; |
|
| Scanning Angle |
30 ~ 145°; |
|
|
Depth |
24cm; (convex array probe) |
|
|
Frequency Range |
2.0 ~ 10MHz; |
|
|
Probe Configuration |
Standard: large convex probe (frequency of 5.0 ~ 3.0 MHz);Optional:75L50S Liner probe (frequency :10.0MHz~5.5MHz); | |
|
Section thickness |
35C60H less than 8.0mm,; |
|
|
Display Mode |
B, 2B, 4B,B/M, M; | |
|
Cine Playback |
480 frames, auto playback and manual playback; |
|
|
Edge Enhancement |
Adjustable from 0 to 3 grades; |
|
|
Dynamic Range |
30 ~ 150dB, stepping of 5dB; |
|
|
Frame Correlation |
Adjustable from 0 to 7 grades; |
|
| Gray-scale Transformation |
Adjustable from A to P grades; |
|
|
Type of Focusing |
Four types of focusing (4 focusing combinations, 16 focus positions respectively available); | |
|
Screen Reversing |
Up/Down reversal; |
|
| Display Information | Trade name, Hospital Name, patient ID, date/time, probe information , focus marker, scale, direction signs, depth, gray bar; | |
| Examination Subjects | Gynecology, obstetrics, orthopedic surgery, urology, cardiology; | |
|
B-mode Measurement |
Distance, area/circumference, angle, volume, histogram; | |
|
M-mode Measurement |
Time, heart rate, slope, distance; | |
| The following are the special measurements for each examination subject | ||
| Gynecology |
Uterus, cervix, left ovary, right ovary, left follicle, and right measurement is the diameter);follicles (4 for each; the average of 3 diameters from each
|
|
|
Obstetrics
|
Fetal biometric parameters (GS, CRL, BPD, FL, HUM, HC, AC, OFD, Q4), nuchal translucency; FTA, FT, CER, TTD, APTD), amniotic fluid index (Q1, Q2, Q3,
|
|
| Orthopedics | BL, ARL, IL; | |
| Urology | Residual urine volume (long diameter, wide diameter, thick diameter), prostate volume (long diameter, wide diameter, thick diameter); | |
| Storage | Image storage, image browsing, Video printer; | |
| Monitor | standard 5.6 inches TFT LCD, screen resolution of 640 * 480 | |
| Cursor | Support USB mouse operation | |

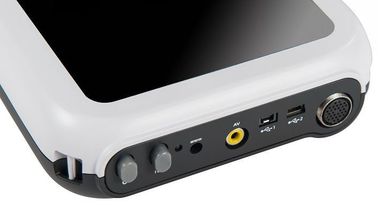

| External Interface | TF card, USB, TV-OUT (composite video), the probe interface, power input interface | |
| Battery power | 11V, 2600mAh | |
| Adapter Model | SW-140300 | |
| AC input | 100-240VAC to 1.5A, 50-60HZ | |
| DC output | 14VDC, 3000mA | |
| Weight | 625g | |
| Volume | 250x120x40 mm3 | |
