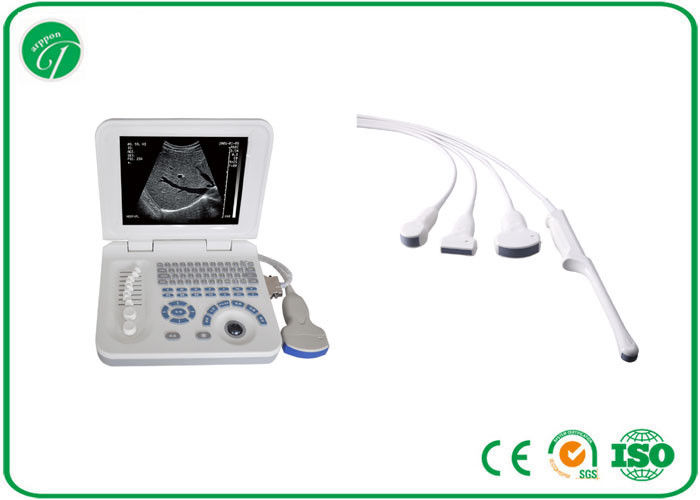

Smart Digital B Ultrasound Scanner CRT Stable Screen All Kinds Of Measurements

B Mode Laptop handled pregnancy Ultrasound Scanner Diagnosis

Applications:
v Diagnosis of liver, gallbladder, kidney, spleen, pancreas, heart, thyroid gland, breast, uterus, bladder, ovary, etc.
v Clinical examination and diagnosis of abdomen and department of obstetrics and gynecology in the hospitals of county, rural-town and town.
v Supervising stations of Planned Parenthood in the city, county, rural-town and town to be suitable for the examinations of early pregnancy, contraceptive ring, perinatal period of pregnant woman, etc.

Standard Configuration:
v Main unit
v 3.5MHz convex probe
v All accessories

Optional:

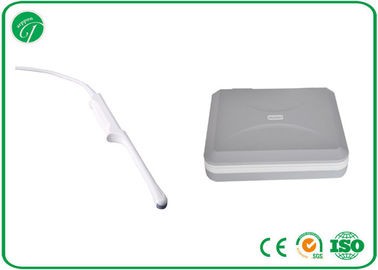

v 7.5MHz Linear probe
v 6.5MHz trans-vaginal probe
v Video Printer (MITSUBISHI P93)

Specifications:
v Display Mode: B, B/B, 4B, B+M, M;
v Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0;
v Scanning depth: ≥ 170mm;
v Lateral resolution: ≤ 2mm (depth≤80mm), ≤ 3mm (80"depth≤130mm);
v Longitudinal resolution: ≤ 1mm (depth≤80mm), ≤ 2mm (80"depth≤130mm);
v Blind: ≤ 5mm;
v Geometric position accuracy: lateral ≤ 15%;
v Longitudinal: ≤10%;
v Dynamic range: 0~120dB adjustable;
v Monitor: 10.4 inch high-resolution;
v Grey scale: 256;
v Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks          (BPD, GS, CRL, FL, HL, etc), expected date of confinement and so on;
v Annotation: hospital name, patient’s name, gender and age, full-screen character annotation, real-time clock      display;
v Body marks: 64;
v Puncture guide: displayed under B mode;
v Gain control: 8 segments TGC and full gain can be adjusted respectively;
v Image reverse: left/right, black/white, up/down;
v Cine loop: 256;
v Permanent storage: 128;
v Image display: continuous playback, pieces of view Video;
v Output: SVGA, PAL, video recorder, Image workstation and etc;
v USB output;
v Machine size(mm): 300(L)×245(W)×60(H);
v Power: AC 220V±22V 50Hz;
v Input power: ≤ 300VA;
  Continuous work hours: ≥ 8h.
