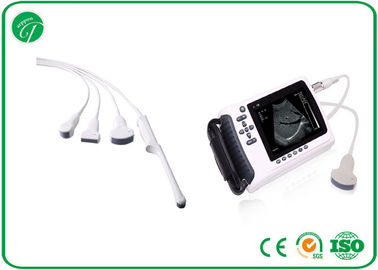

Portable Pregnancy Ultrasound Scanner , Laptop Ultrasound Scanner AC Adapter

Large Image : Portable Pregnancy Ultrasound Scanner , Laptop Ultrasound Scanner AC Adapter

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018H

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100units/ month

Contact Now

Detailed Product Description

Probe:	3.5MHz Convex Probe	Monitor Size:	5 Inch
Display Mode:	B, B+B, B+M, M, 4B	Image Gray Scale:	256
Image Storage:	128	Cine Loop:	≥400 Frame
Scan Depth:	70mm-140mm	Net Weight:	700G
High Light:	Portable Ultrasound Scanner , Laptop Ultrasound Scanner

Full Digital B Mode Handheld Ultrasound Scanner with Li-ion battery

Brief introduction:	This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.

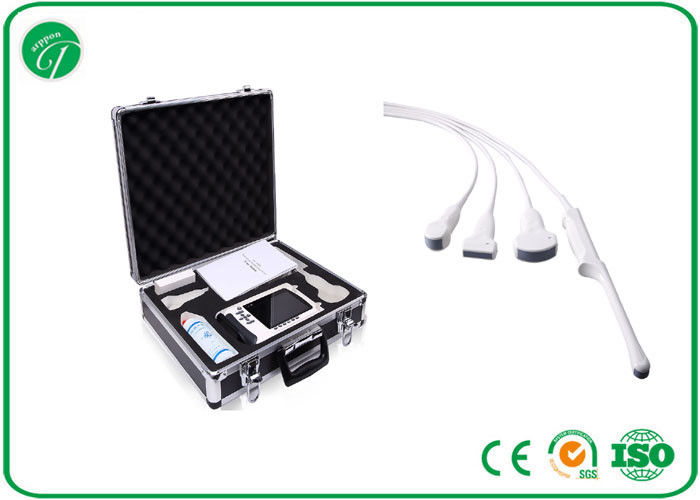

Standard Configuration:	·Main unit (containing a piece of Li-ion battery) ·3.5MHz Convex probe ·Manual/ technical instructions ·Main charger (AC-adapter) ·Wrap Bag ·Protective Box
Fitting pieces:	Fitting pieces ·5.0MHz micro-convex probe ·6.5MHz trans-virginal probe ·7.5MHz linear probe ·Video printer ·Li-ion battery ·Car charger ·Charging adaptation wire(containing power cord)
Technical specification	Model
	Probe		7.5Mhz linear probe; 6.5Mhz trans-virginal probe	3.5Mhz convex probe	5.0Mhz micro-convex probe
	Detect Depth(mm)		≥80	≥140	≥90
	Resolution/mm	Lateral	≤1(depth≤60)	≤3(depth≤80)≤5(80＜depth≤130)	≤3(depth≤60)
		Axial	≤1(depth≤80)	≤1(depth≤80)	≤1(depth≤60)
	Blind zone(mm)		≤3	≤6	≤5
	Geometric position precision	Horizontal	≤5	≤7.5	≤7.5
		Vertical	≤5	≤5	≤5
	Monitor size		5 inch
	Display mode		B, B+B, B+M, M, 4B
	Image gray scale		256
	Image storage		128
	Cine loop		≥400 frame
	Scan depth		70mm-140mm
	Image flip		Up/down, left/right
	Focus position		Adjustable
	Posture mark		16
	Image process		Histogram, color encode, gama, image smooth
	Probe frequency		Adjustable ( 3 point each probe )
	Frame correction		Adjustable
	Measurement		Distance, circumference, area, volume, heart rate, GA, EDD
	Notation		Date, time, name, sex, age, full screen words edit and etc.
	Output report		Measurement
	Output		USB2.0, VIDEO( PALD, NTSC)
	Battery continuous work		≥3 hours
	Size		230mm(L) x 120mm(W) x 38mm(H)
	Net weight		700G
