Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	4000 units/ month

Contact Now

Detailed Product Description

Monitorsolution:	Imported 12 " LCD	Probe Elements:	96
Monitor Size:	12 Inch	Image Gray Scale:	256 Level
Power Supply:	AV220V±22V, 50MHz±1MHz	Scanning Depth:	240mm Max
High Light:	Portable Ultrasound Scanner , Laptop Ultrasound Scanner

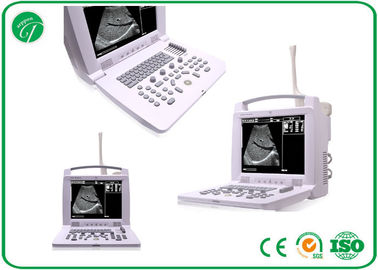

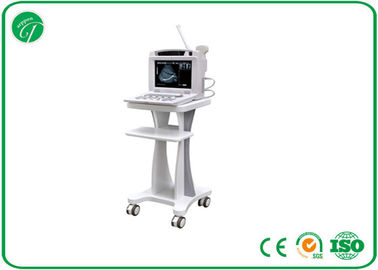

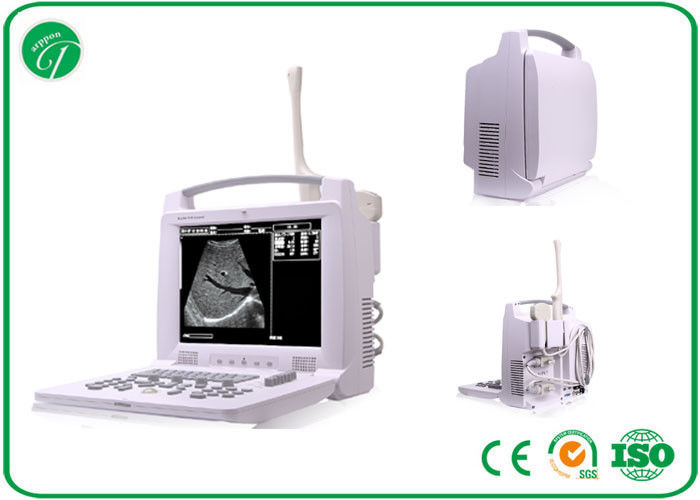

12 " LCD B Mode Ultrasound Scanner , Digital high resolution ultrasound CE

Features:

Standard configurations:

Optional:

Probes:

3.5MHz Convex Probe (2.5-3.5-5.0MHz ) Applications: Abdominal, Obstetrics,
Gynecology, Regional nerve block, Procedure and Biopsy guidance.
5.0MHz Micro –convex (4.5-5.0-5.5 MHz) Applications: Cardiac, abdominal, obstetrics.
6.5MHz Trans-vaginal (5.5-6.5 -7.5 MHz) Applications: Uterus, adnexa and etc.
7.5 MHz Linear Probe Applications: eyeball, testicle, breast, small parts, nerve, vascular, venous access musculoskeletal, etc.

Specifications:

Standard probe: 3.5MHz Convex Probe;
Scanning Depth:240mm Max(depend on the probe types)
Frequency:2.5MHz -8.5MHz (Depend on the probe types)
Connectors:2
Blind zone: ≤5mm;
Display modes: B; B+B; B+M; M;4B
Gray Scale: 256;
Cine-loop: 809;
Image storage: 32 frames;
Resolution: lateral≤ 2mm; axial≤1mm;
Image reverse: up/down; left/right; black/white;
Dynamic range: 100dB-130dB
Measurement: distance; circumference; area; heart rate; gestational week; fetal weight etc;
Annotation: time; date; ID; age; sex; detecting depth; probe type; focus; frame correlation etc;
STC: 8 slides for Near, Far and Overall gain control.

Standard probe	3.5MHz Convex Probe;
Scanning Depth	240mm Max(depend on the probe types)
Frequency	2.5MHz -8.5MHz (Depend on the probe types)
Connectors	2
Blind zone:	≤5mm;
Display modes	B; B+B; B+M; M;4B
Gray Scale	256;
Cine-loop	809;
Image storage	32 frames;
Resolution	lateral≤ 2mm; axial≤1mm;
Image reverse	up/down; left/right; black/white;
Dynamic range	100dB-130dB
Measurement	distance; circumference; area; heart rate;
Annotation	time; date; ID; age; sex; detecting depth;
STC	8 slides for Near, Far and Overall gain control.
Body marks	≥40 types with probe position;
Video output	PAL-D , VGA
Monitor	12 " LCD high resolution monitor
Power Supply	100V~130V/220V~240V, 50/60H
Net Weight	6kg (including probe)
Dimensions(mm)	410Χ320Χ410
