Monitor: | 12 Inch LED | Imaging Modes: | CFM, PDI, PW, CED, B/C |
---|---|---|---|
B&W Mode: | B, B/B, B/M, 4B, M, PW | Probe Connectors: | 2 Active Probe Connector Ports |
Material: | Flame Retardant ABS | Type: | Doppler Ultrasound Equipment |
High Light: | Color Doppler Ultrasonography,Doppler Medical Equipment |

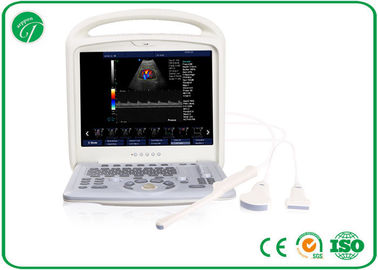

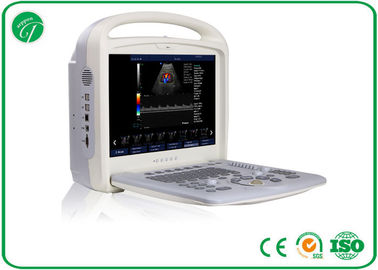

Factory price high performance Portable color Doppler ultrasound scanner
Specifications:
Display: 12.1 inch LCD high definition monitor
Display Mode: B&W mode: B, B/B, B/M, 4B, M, PW
Color Flow Mode: CFM, PDI, PW, CED, B/C
Duplex: Real-time simultaneous 2D, color
Gray scale: 256
Cine-loop: 1000 frame cine loop memory
Storage media: 64G massive image-storage capacity
Zoom: Pan zoom
Dynamic Receiving Focusing (DRF)
Dynamic Frequency Scanning (DFS)
Scanning depth:≥300mm
Lateral resolution(mm):≤1(depth≤80)≤2(80<depth≤130)
Axial resolution(mm): ≤1(depth≤80)≤2(80<depth≤130)
Blind area(mm): ≤5mm
Geometric position precision- Horizontal ≤10%
Geometric position precision- Vertical ≤10%
USB ports: 2
THI: tissue harmonic imaging
iTouch
iClear Imaging
Pre-processing:
8-segment TGC
Preset
Gain (B&W, Color, Doppler)
Audio
PRF
Dynamic Range
Image enhancement
Acoustic Power
Post-processing:
Gray map
Black/white, Left/right, Up/down reverse
Others:
Probe connectors: 2 active probe connector ports
Peripheral ports: video, S-video, VGA, 4 USB ports
Power supply: AC200V±3A
Main unit power: DC12.8V 11.5A
Standard Configuration:
·Scanner Body: 1pc
·3.5Mhz Convex Probe: 1pc
·Charger with a Set of Wires: 1set
·Bottle of USG gel: 1pc
·User Manual: 1pc
Optional:
·6.5MHz Trans-vaginal Probe
·7.5MHz Linear Probe
Probes information
Probe | 5 Steps Multi-frequency | pictures |
3.5Mhz abdominal probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz | |
6.5Mhz transvaginal probe | 5.0, 6.0, 6.5, 7.5, 9.0Mhz | |
7.5Mhz linear probe | 6.0, 6.5, 7.5, 10.0, 12.0Mhz | |
3.5Mhz micro-convex probe | 2.0,2.5, 3.5, 4.5 ,5.0Mhz | |
3.0Mhz phased array probe | 2.0, 3.0, 3.5, 4.0 , 5.5Mhz | |
4D volume probe | 2.0, 3.0, 3.5, 4.0 , 5.5Mhz |
