Digital Electrocardiograph Portable ECG Machine 6 Channel Format Recording

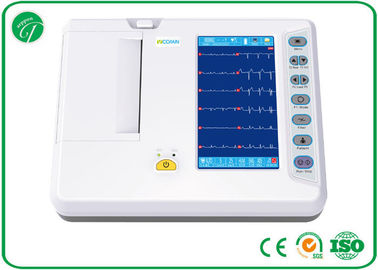

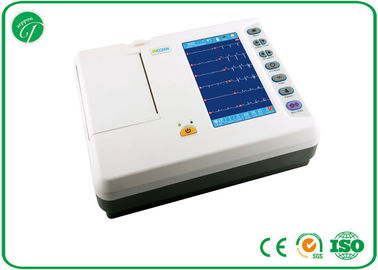

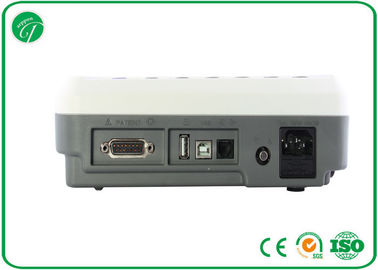

Large Image : Digital Electrocardiograph Portable ECG Machine 6 Channel Format Recording

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	8062

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	6 work days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Contact Now

Detailed Product Description

Certificate:	ISO	Color:	White
Brand Name:	Darppon	Warranty:	1 Year
Item:	Digital ECG Machine	Lead:	Standard 12 Leads
Working Modes:	Manual/Auto/Arrhythmia Analysis Modes	Model:	8062
High Light:	Handheld Ecg Monitor , Portable Ecg Monitor

6 channel/12 leads Portable 7 inch LCD display portable ECG machine Li-ion battery

Product Introduction

Model: 8062
Name: Electrocardiograph

1. Features

channel	6 channel
Name	Electrocardiograph
Lead	standard 12 leads
Input dynamic range	±10Vpp
Patient current leakage	<10μA
Calibrating voltage	1mV±2%
Voltage tolerance	≥±500mV
Time constant	≥3.2s
Frequency response	0.05~160Hz(-3db)
Noise level	<15μVp-p
Input circuit current	≤0.05μA
Sensitivity	2.5, 5,10, 20mm/mV
Inter-channel interference	≤0.5mm
Paper speed	6.25,12.5, 25,50mm/s(±3%)
Patient current leakage	<10μA

Filter:

AC filter	50Hz / 60Hz
EMG filter	25Hz / 45Hz
Anti-drift filter	0.15Hz(Adaptive)
CMMR	≥120dB (with AC filter)
Sensitivity valve	≤20μV
Input impedance	≥50MΩ
Work modes	MAN,AUTO,ANALYSIS Modes
Lead	Lead acquisition12bit/1000Hz(synchronously 12 leads)
Input circuit: floating	protection circuit against defibrillator effect
Display	7 inch LCD

3. Standard Configuration

Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set

Digital Electrocardiograph Portable ECG Machine 6 Channel Format Recording
