Networking Port Color Doppler Ultrasound Scanner Flame Retardant ABS AC Power

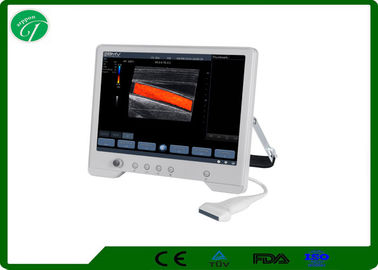

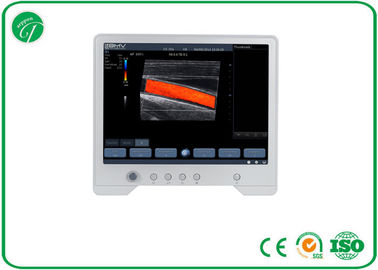

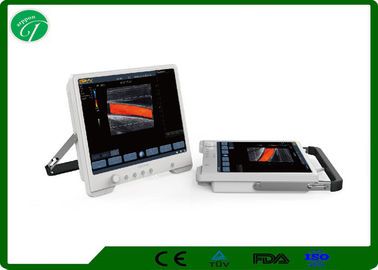

           Touch screen 15”LCD 3KG Full digital Color Doppler Ultrasound Scanner ​





TouchScan 30

Deliver Excellence Wherever you Go



Featuring the latest in advanced imaging technology all incorporated in a compact hardware,the new touchscan30 color dopper system is the perfect choice for physicians and sonographers who want to deliver excellence in clinical efficiency and patient care wherever they go.





Standard Configurations



Touchscan 30 color main unit

15 inch LCD with high resolution:1024*768

Touchscreen

Two USB ports

One s-video out port

One networking port

One power inlet

One convex probe (3.5M R60)

Three transducer connectors

Plenty of measurement &calculation software packages

18 months warranty since ex-factory date for main unit

12 months warranty since ex-factory date for probes





Optional



Probes:

3.5MHz convex probe (R60)

7.5MHz linear probe (L40)

6.5MHz transvaginal/transrectal probe (R13)

3.5MHz micro-convex probe (R20)

3.5MHz micro-convex probe (R15)



Power supply:

AC power supply system,

Built-in Lithium battery power supply system



1. Probes
   • Convex Probe

1)C35-6

Applications: Abdomen, OB , GYN

Center Frequency:3.5Mhz



2) C50-2 Micro-Convex

Applications: Abdomen, OB , GYN

Center Frequency:5.0Mhz



3)C65-15 Micro-Convex

Applications: Abdomen, OB , GYN

Center Frequency:6.5Mhz



• Phased Array Probe

Applications: Cardiac, Abdomen, TCD, Emergency

Center Frequency:



• Linear Probes

Applications: Musculoskeletal,small parts, vascular ,nerve block

Center Frequency:7.5Mhz



• Trans-vaginal/Trans-rectal probe

Applications: Vaginal, Rectal

Center Frequency:6.5 Mhz





Technical Specification

B&W mode: B,M,2B,B/M,4B,C,PW, Power,Dir-Power,THI

Gray sacle: 256

Display: 15”LCD Full Touchscreen monitor

Transducer frequency: 2-11Mhz

Digital technology:

Wide-angle imaging

Panoramic focusing technology

Compatible with high and low speed blood

Rolling M technology

Panoramic imaging

Frequency composite

Space compound

Real-time Dynamic Aperture

Tissue Harmonic Imaging

Scanning depth: 220mm

Imaging Processing

Pre-processing: Cloud processing technology

Fine blood flow imaging ,high sensitive

8-segment TGC

Gain

Dynamic range

Persisitence

M Soften

Noise suppression

Post-processing: Image enhancement

Gray-scale Map

Pseudo Color Map

Tissue Specific Imaging

Interface to turn 180°

Left/right reverse

Up/down reverse

Functions

Smart touch-screen design Supported

Cine-loop: 334 frame cine loop memory

USB ports: 2

Zoom: Pan zoom for the active image

Amplification: 10 times

THI: Tissue Harmonic Imaging

B-opt: One-key Optimize

Multi language: Supported

DICOM: DICOM3.0

Print: Report print for text&graph&image

Measurement & Calculations

B mode: Distance,angle,area,volume,trace length,

distanceratio, area ratio, histogram

M mode: Distance,time,slope,Heart Rate

Software packages: Abdomen,obstetric,Gynecology,Cadiac,Neural and Small Parts

Others

Transducer connector: 3 active transducer connector ports

Peripheral ports: Video,2 USB ports,1 networking port,1 power inlet

Power supply: 100-240V~ 50/60Hz <100VA

Dimensions(main unit): 358mm(W)*366mm(L)*65mm(H)

Packing dimensions : 415mm(W)*435mm(L)*140mm(H)

Net weight: About 3.0kg

Gross weight: About 4.5kg



Probe	5 Steps Multi-frequency	pictures
3.5Mhz abdominal probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
6.5Mhz transvaginal probe	5.0, 6.0, 6.5, 7.5, 9.0Mhz
7.5Mhz linear probe	6.0, 6.5, 7.5, 10.0, 12.0Mhz
3.5Mhz micro-convex probe	2.0,2.5, 3.5, 4.5 ,5.0Mhz
3.0Mhz phased array probe	2.0, 3.0, 3.5, 4.0 , 5.5Mhz
4D volume probe	2.0, 3.0, 3.5, 4.0 , 5.5Mhz
