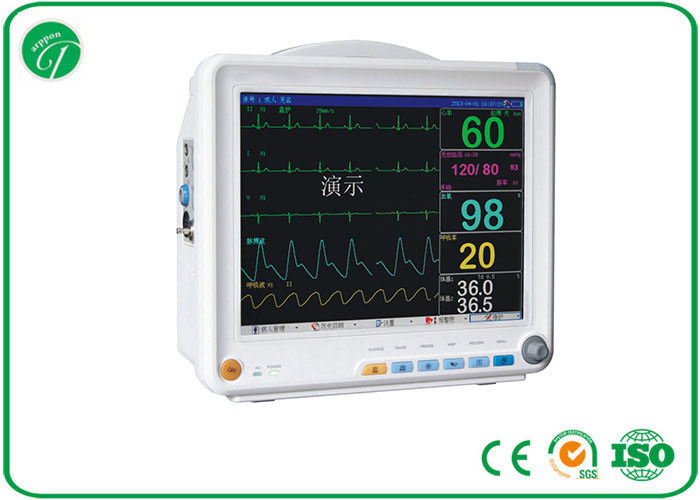

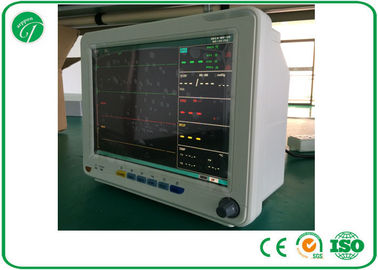

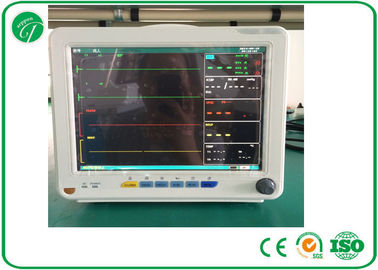

Portable Home Medical Monitoring , Physiological Monitoring Equipment Intelligent Design

Portable Multiparameter Vital Signs monitor Patient Monitoring Equipment with Work hours 150 minutes

Classic integration, intelligent design
12.1 inch TFT high resolution color display
Large font display interface
Breathing oxygen graph display
A standard display interface
All lead display
The unique remote monitoring
Trend diagram display
7 lead ecg display on the same screen
Voice alarm
Support the analog output
Support the lithium battery
Work hours 150 minutes

Abundant monitoring parameters
The basic configuration: ECG, NIBP, RESP, Sp02, TEMP, PR
Optional: CO2, IBP, CO, AG, 12 lead, touch screen

Humanized appearance and structure design
High resolution FTF, can display 12 waveform at the same time
Touch screen make the operation more quick and easy, save time and effort.
Frame type internal structure and the design of the route optimization, has better waterproof defensive ability, easy to maintain.



1.1 Safety Classifications


1.2 Applicable Standards

Medical Device Directive 93/42/EEC
EN60601-1:2005 or IEC60601-1:2005, Medical Electrical Equipment, Part 1: General Requirements for Safety
EN60601-1-1 or IEC60601-1-1, Medical Electrical Equipment, Part 1-1: General Requirements for Safety, Collateral Standard: Safety Requirements for Medical Electrical Systems
IEC60601-1-4, Medical Electrical Equipment, Part 1-4: General Requirements for Safety, Collateral Standard: Programmable Electrical Medical Systems
IEC60601-2-49, Medical Electrical Equipment, Part 2-49: Particular Requirements for the Safety of Multifunction Patient Monitoring Equipment
IEC 60601-1-2:2007, Electromagnetic Compatibility, Medical Electrical Equipment
ISO 21647:2009, Medical electrical equipment — Particular requirements for the basic safety and essential performance of respiratory gas monitors


1.3 Environment

Temperature
Working 0 ~ 40 ℃
Storage -20 ~ 50 ℃
Humidity
Working 15 % ~ 90 %
Storage 15 % ~ 90 % (no coagulation)
Atmospheric pressure
Working 86.0 kPa ~ 106.0kPa;
Storage 86.0 kPa ~ 106.0kPa


1.4 Lead mode

5 Leads: RA,LA,LL,RL,V; Lead mode: I, II, III, AVR, AVL, AVF, V
1.11.4 Gain
×2.5mm/mV, ×5.0mm/mV, ×10mm/mV, ×20mm/mV
1.11.5 Sweep speed
12.5mm/s, 25mm/s, 50mm/s

1.5 Heart rate

Measure range
Adult 15 ~ 300 bpm
Neonatal/Pediatric 15 ~ 350 bpm
Accuracy ±1%
Resolution 1 bpm

1.7 Sensitivity

> 200 μV P-P

1.8 Differential Input Impedance
> 5 M ohm

1.9 Bandwidth

Surgery 1 ~ 20 Hz
Monitor 0.5 ~ 40 Hz
Diagnostic 0.05 ~ 130 Hz

1.10 CMRR

Diagnostic Mode >90 dB
Monitor Mode >110 dB
Surgery Mode >110 dB

1.11 Electrode offset potential
300mV
