Product Details:
Payment & Shipping Terms:
|
| Display: | 12.1" Color TFT LED | Working Time: | 2 Hours (larger Battery For 4-5 Hrs) |
|---|---|---|---|
| Resolution: | 1bpm | Sweep Speed: | 12.5 Mm/s, 25 Mm/s, 50 Mm/s |
| Input Impedance: | ≥5.0 Mohm | Size: | 306*287*162mm |
| Highlight: | Multi Parameter Patient Monitor,Patient Monitor Machine |
||

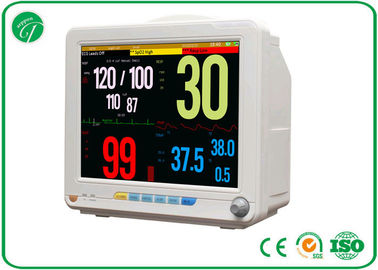

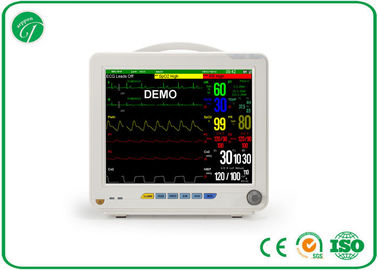

High Resolution Patient Monitoring Equipment 6 Parameters With 12.1 Inch TFT LED Display
|
Features:
|
|
1. Display: 12.1” color TFT screen, high resolution: 1024×768 dpi;
2. 6 Parameters: Standard – 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR.,
Optional – 3/12-lead ECG, single/double IBP, double Temp., Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO; 3. Patient Range: Suitable for Adult, Pediatric, Neonate;
4. Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms;
5. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish,French, Russian, German, Italian);
6. Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP records and 200 alarm event;
7. Battery: Built-in 2 hours rechargeable lithium battery, and battery volume display. 4 hours rechargeable lithium battery (optional);
8. Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional).
Function:
1. Advance patient Manage: gender, full name, ID no., room no., bed no., weight, height, blood type, paced or not, remakes;
2. Multi-parameter board: Separated parameter board, main board, ECG board, SPO2 board, and NIBP board are independent;
3. Interface: Color, layout of each parameters can be set up by user need, bed to bed view display(optional);
4. Fanless: Use special fanless cooling technology in the device to provide users quiet environment;
5. Standby: Unique standby mode for energy saving and suspend monitoring;
6. Time delay: Time delay switch-off function to save data when monitor turn off suddenly;
9. Easy software update: Users can update monitor software by themselves;
10. Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis;SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations;
11. Storage: external SD card slot enables memory extension(optional);
12. Data transfer: USB port to allow to transfer patient data to a PC (optional);
13. Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but cheaper than it(optional);
14. Resistance to interference : Efficient resistance to interference of defibrillator and HF knife;
15. Other optional: Touch Screen, Printer,Wall amount, VGA connect
|
1.1 Safety Classifications
| Item | Specification |
| MDD classification | Class IIb |
| Anti-electroshock degree | Class I equipment with internal power supply |
| Anti-electroshock degree |
TEMP/SpO2/NIBP: BF |
| Explosion proof level | Ordinary equipment,without explosion proof |
| Harmful liquid proof degree | IPX1 |
| Working system | Continuous running equipment |
| Equipment type | Portable |
1.2 Applicable Standards
Medical Device Directive 93/42/EEC
EN60601-1:2005 or IEC60601-1:2005, Medical Electrical Equipment, Part 1: General Requirements for Safety
EN60601-1-1 or IEC60601-1-1, Medical Electrical Equipment, Part 1-1: General Requirements for Safety, Collateral Standard: Safety Requirements for Medical Electrical Systems
IEC60601-1-4, Medical Electrical Equipment, Part 1-4: General Requirements for Safety, Collateral Standard: Programmable Electrical Medical Systems
IEC60601-2-49, Medical Electrical Equipment, Part 2-49: Particular Requirements for the Safety of Multifunction Patient Monitoring Equipment
IEC 60601-1-2:2007, Electromagnetic Compatibility, Medical Electrical Equipment
ISO 21647:2009, Medical electrical equipment — Particular requirements for the basic safety and essential performance of respiratory gas monitors
1.3 Environment
Temperature
Working 0 ~ 40 ℃
Storage -20 ~ 50 ℃
Humidity
Working 15 % ~ 90 %
Storage 15 % ~ 90 % (no coagulation)
Atmospheric pressure
Working 86.0 kPa ~ 106.0kPa;
Storage 86.0 kPa ~ 106.0kPa
1.4 Lead mode
5 Leads: RA,LA,LL,RL,V; Lead mode: I, II, III, AVR, AVL, AVF, V
1.11.4 Gain
×2.5mm/mV, ×5.0mm/mV, ×10mm/mV, ×20mm/mV
1.11.5 Sweep speed
12.5mm/s, 25mm/s, 50mm/s
1.5 Heart rate
Measure range
Adult 15 ~ 300 bpm
Neonatal/Pediatric 15 ~ 350 bpm
Accuracy ±1%
Resolution 1 bpm
1.7 Sensitivity
> 200 μV P-P
1.8 Differential Input Impedance
> 5 M ohm
1.9 Bandwidth
Surgery 1 ~ 20 Hz
Monitor 0.5 ~ 40 Hz
Diagnostic 0.05 ~ 130 Hz
1.10 CMRR
Diagnostic Mode >90 dB
Monitor Mode >110 dB
Surgery Mode >110 dB
1.11 Electrode offset potential
300mV
