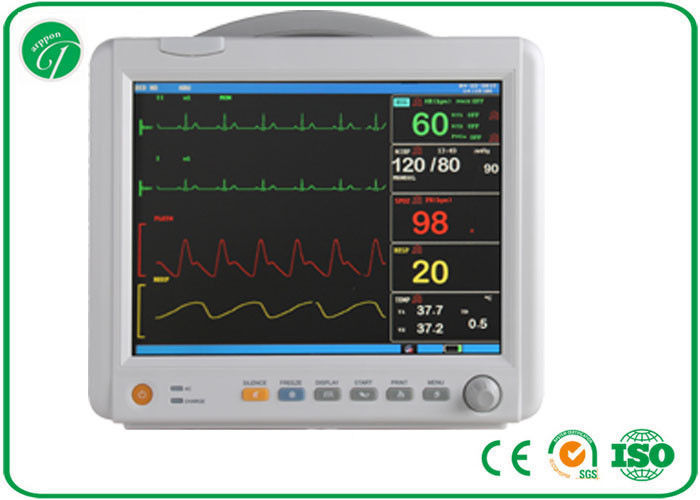

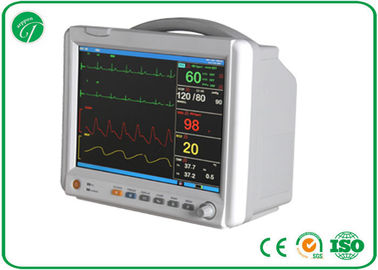

Dual TEMP ECG Patient Monitor , Medical Monitoring Equipment SPO2 Technology

           12.1 inch Ergonomic design 8 waveforms portable Patient Monitoring Equipment



Features:

Ergonomic design,portable,convenient to use

12.1’ TFT display, configurable up to 8 waveforms, enables maximum data visibility for the most critical parameters

Unique digital SpO2 technology can work accurate during motion and low perfusion

Anti AC& high frequency electrosurgical&defibrilator’s interference

Rich screen layout, standard, large font, trend graph, OxyCRG, ECG full leads and others

Strong data storage: 720 hours trend, 10000 group NIBP, 1024 alarms events

ST analysis,arrythmia analysis,pacemaker analysis, drug analysis and calculation

Audible&visual alarm available,adjustable

Patient information management function

Powerful software function to support use in NICU,ICU,OR,CCU or normal patient room

Optional software upgrading based on RJ-45

Wired/wireless networking with central monitoring system, up to 64 beds in one group

Built-in 3 trace thermal recorder for printing real-time and historical data

Suitable for adult, pediatrics and neonate patients

Standard configuration:

ECG, NIBP, SpO2, TEMP, RESP, PR

Optional:

Dual TEMP

Thermal recorder

Wall mount

Trollery

1.1 Safety Classifications


1.2 Applicable Standards

Medical Device Directive 93/42/EEC
EN60601-1:2005 or IEC60601-1:2005, Medical Electrical Equipment, Part 1: General Requirements for Safety
EN60601-1-1 or IEC60601-1-1, Medical Electrical Equipment, Part 1-1: General Requirements for Safety, Collateral Standard: Safety Requirements for Medical Electrical Systems
IEC60601-1-4, Medical Electrical Equipment, Part 1-4: General Requirements for Safety, Collateral Standard: Programmable Electrical Medical Systems
IEC60601-2-49, Medical Electrical Equipment, Part 2-49: Particular Requirements for the Safety of Multifunction Patient Monitoring Equipment
IEC 60601-1-2:2007, Electromagnetic Compatibility, Medical Electrical Equipment
ISO 21647:2009, Medical electrical equipment — Particular requirements for the basic safety and essential performance of respiratory gas monitors


1.3 Environment

Temperature
Working 0 ~ 40 ℃
Storage -20 ~ 50 ℃
Humidity
Working 15 % ~ 90 %
Storage 15 % ~ 90 % (no coagulation)
Atmospheric pressure
Working 86.0 kPa ~ 106.0kPa;
Storage 86.0 kPa ~ 106.0kPa


1.4 Lead mode

5 Leads: RA,LA,LL,RL,V; Lead mode: I, II, III, AVR, AVL, AVF, V
1.11.4 Gain
×2.5mm/mV, ×5.0mm/mV, ×10mm/mV, ×20mm/mV
1.11.5 Sweep speed
12.5mm/s, 25mm/s, 50mm/s

1.5 Heart rate

Measure range
Adult 15 ~ 300 bpm
Neonatal/Pediatric 15 ~ 350 bpm
Accuracy ±1%
Resolution 1 bpm

1.7 Sensitivity

> 200 μV P-P

1.8 Differential Input Impedance
> 5 M ohm

1.9 Bandwidth

Surgery 1 ~ 20 Hz
Monitor 0.5 ~ 40 Hz
Diagnostic 0.05 ~ 130 Hz

1.10 CMRR

Diagnostic Mode >90 dB
Monitor Mode >110 dB
Surgery Mode >110 dB

1.11 Electrode offset potential
300mV
