Full Digital Doppler Ultrasound Machine Multi - Frequency Probe With A8 Embedded System

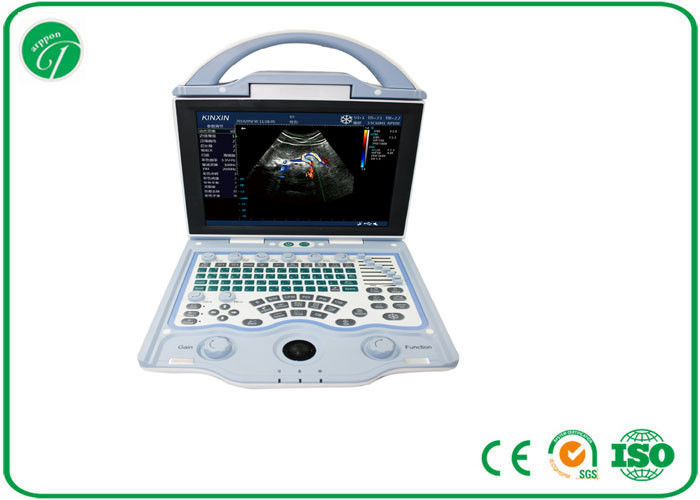

10.4 inch Color Doppler portable ultrasound scanner Adopt A8 embedded system

1. Designation:

DCU12 Full Digital Color Doppler Ultrasound Scanner

2. Application:

Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs of clinical application extension.

3. System feature:

3.1 Adopt A8 embedded system. High reliability to keep virus away thoroughly.
3.2 Operation system: Limux system, English/Chinese menu switch alternatively.
3.3 Full digital multi-beam formation technology, high precision delay dynamic receiving focusing, ultra-wide frequency imaging, adaptive image optimization processing technique, adaptive vessel imaging, adaptive Doppler imaging.
3.4 Ultra-wide frequency full digital beam former: Dynamic focuse
3.5 Two-dimensional grey scale imaging unit
3.6 M imaging unit
3.7 Visible and adjustable dynamic range
3.8 Two-dimensional imaging unit, grey scale ≥ 256 level, excellently detailed and comparative resolution and full-screen uniformity

4. Parameters:

4.1 Specification parameters:

1. Grey scale: 256 level
2. Color scale: 256 level
3. Display: 10.4’flicker-free high-resolution medical color LCD
4. Power: 100-240V, 1.2-0.6A frequency: 50-60Hz
5. Adapter output: DC12.8V 3.0A
6. Power consumption: ≤100VA
7. Main unit size: 256*150*326(mm, Length*width*height)
8. Unit net weight: 4.5Kg(Accessories not included)

4.2 Multi-media and accessory equipments

1. Video recorder
2. I-station integral work station, realize image storage, report form and cloud print
3. U flash disk (file management, software upgrade and one-key storage) and DICOM port, convenient for data management and available to removal transmission.
4. Dual-mode TV output: PAL/NTSC


4.3 Probe port:
Two enabled probe ports, automatic identification technology, available to optional probe configuration.


4.4 Language
Menu operation, interface language: English/Chinese switch alternatively


4.5 Scanning parameter:
l 3.5MHz R60 multi-frequency convex probe
1. Scan angle: 60°
2. Frequency range: 2.0MHz-5.0MHz
3. Frequency conversion options: 2.0/2.5/3.5/5.0
4. Max-scan depth: ≥190mm
5. Blind area: ≤5mm
6. Resolution: Axial resolution ≤1mm, Lateral resolution ≤2mm
7. Geometrical position accuracy: Horizontal ≤5%, Portrait ≤5%

5. Standard configurations

l Main unit:1 pc
l 3.5 MHz convex abdomen probe:1 pc
>6.5 MHz trans-vaginal probe
> 7.5 MHz linear probe
l Workstation software: 1 set
l Reticle:1 pc

6. Optional configurations

l Foot switch
l Trolley
l Video recorder (UP-897MD)
l Ethernet switch
