Product Details:
Payment & Shipping Terms:
|
| Flow Rate: | 0-5L/min | Oxygen Concentration: | 93% (±3%) |
|---|---|---|---|
| Outlet Pressure: | 0.04-0.07Mpa | Noise Level: | ≤50dB |
| Power: | AC220V (±10%) | Power Consumption: | ≤480W |
| Alarm: | Power Failure Alarm; High/low Pressure Alarm | Net Weight: | 25kg |
| Size: | 365×375×600mm | Model Number: | Jay-5 |
| High Light: | Health Medical Equipment,Home Health Care Equipment |
||

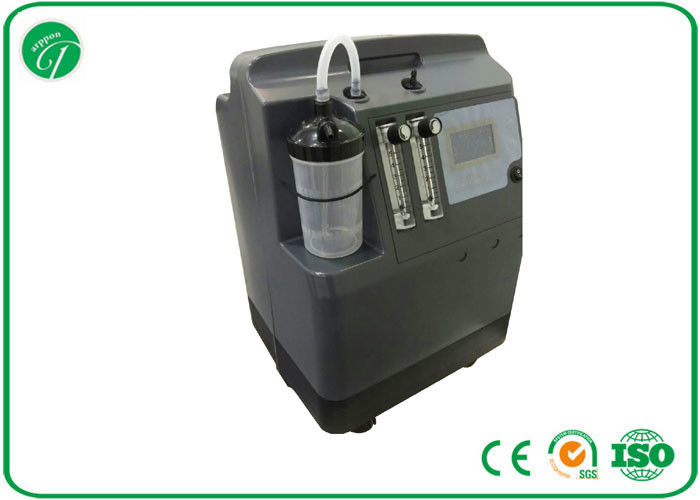

oxygen concentrator/oxygen generator/Medical product portable oxygen generator low price Jay-5
The JAY-5/5Q 0-5L/Min oxygen concentrator we provide is classified into the ordinary type and the low-noise type. The two types of oxygen gas generators have the same parameters except that the low-noise type one has smaller size, lighter weight and makes lower noises while working. Price of the low-noise type one is slightly higher than the ordinary type one. Our oxygen concentrating machine is energy-saving and safe to use. The optional dual-flow configuration allows two users to inhale oxygen at the same time by sharing one machine.
Application
Comparing with other model products, this JAY-5/5Q 0-5L/Min oxygen concentrator has wider application scope. It can be used for the following applications.
1. Medical treatment.
Our product can be used for adjuvant treatment for respiratory system diseases, cardio vascular and cerebral vascular system diseases, chronic obstructive pulmonary disease, carbon monoxide poisoning and other hypoxia diseases. It is suitable for clinics, community hospitals, township health clinics, etc.
2. Home health care.
With our oxygen concentrator you can enjoy oxygen therapy at home without going to the clinic or hospital on purpose.
3. Oxygen cocktail preparation.
Combining a mixer, this oxygen producing machine can be used to produce oxygen cocktail and make oxygen "edible".
4. Veterinary use.
This product is also suitable for small-sized animals to inhale oxygen.
Technical Parameter of Oxygen Concentrator
| Model | JAY-5 | JAY-5Q |
| Flow Rate | 0-5L/min | |
| Oxygen Concentration | 93% (±3%) | |
| Outlet Pressure | 0.04-0.07Mpa | |
| Noise Level | ≤50dB | 40 db |
| Power | AC220V (±10%), 50/60±1Hz; AC110V (±10%), 50/60Hz (±1Hz) | |
| Power Consumption | ≤480W | ≤350W |
| LCD display | Starting times, operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours | |
| Alarm | Power failure alarm; high/low pressure alarm | |
| Net Weight | 25kg | 16 kgs |
| Size | 365×375×600mm | 320×360×360mm |
Optional
1. Nebulizer (Atomizer)
2. Low concentration alarm: when oxygen concentration is 82% or above, the green light will be on; when the oxygen concentration is blow 82%, the red light will be on.
3. Maintenance alarm: alarm for maintenance after 3000 hours' operation.
High temperature alarm: alarm for high temperature when the internal system temperature is above 50°C.
5. Pulse oximeter: fingertip pulse oximeter is available for monitoring patient's oxygen saturation on site.
6. Small LCD display: showing accumulated time, present working time and preset time.
7. Dual-flow configuration: ( not suitable for JAY-5 low-noise type)
