Product Details:
Payment & Shipping Terms:
|
| Display: | LCD +LED | Working Time: | 8 Hours For Continuous Working |
|---|---|---|---|
| Dimension: | 285 Mm(L)* 230 Mm(W)* 100 Mm(H) | Resolution: | 1bpm |
| Sweep Speed: | 12.5 Mm/s, 25 Mm/s, 50 Mm/s | Weight: | 1.7Kg (excluding Accessories) |
| High Light: | Multi Parameter Patient Monitor,Patient Monitor Machine |
||

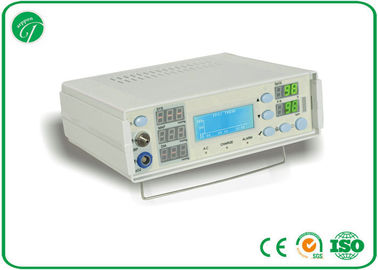

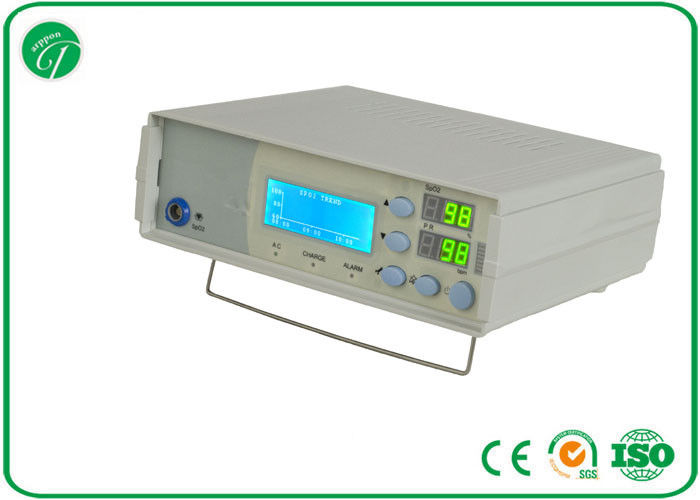

LCD +LED display 100 hours Built-in memory Tabletop pulse oximeter Patient Monitoring Equipment
Features
|
| ||||||
| - Dimension: 285 mm(L)* 230 mm(W)* 100 mm(H) | DIA: 10 ~ 210 mmHg | ||||||
| - Weight: 1.7Kg (excluding accessories) | MEAN: 20 ~ 230 mmHg | ||||||
| Power Supply | Pediatric: SYS: 40 ~ 200 mmHg | ||||||
| - Voltage: AC100～240V, 50/60HZ | DIA: 10 ~ 150mmHg | ||||||
| Display | MEAN: 20 ~ 165 mmHg | ||||||
| - LCD+LED | Neonate: SYS: 40~ 135 mmHg | ||||||
| Battery | DIA: 10 ~ 95 mmHg | ||||||
| - Type: Rechargeable lithium battery 3.7V,2200mAH | MEAN: 20 ~ 105 mmHg | ||||||
| - Charge Cycle: 500 times | - Static pressure accuracy: ±3mmHg | ||||||
| - Working time: 8 hours for continuous working | - Resolution: 1mmHg | ||||||
| Alarm | - Accuracy: Maximum Mean error ±5mmHg | ||||||
| - Level: Low, medium and high | Maximum Standard deviation ±8mmHg | ||||||
| - Indication: Auditory and visual | - Hardware and Software Double Protections | ||||||
| Trend & Reviewing: | SpO₂ | ||||||
| - 100 hours patient data storage | - Measurement Range: 0 ~ 100 % | ||||||
| - 500 NIBP results review for VS900-II | - Resolution: 1 % | ||||||
| Operating Environment | - Accuracy: 70% ~ 100%, ±2 % | ||||||
| - Temperature: 5 ℃~ 40℃ | 0% ~ 69%, unspecified | ||||||
| - Humidity: 15% ~ 80% (non-condensing) | PR | ||||||
| - Atmosphere pressure: 86 KPa ~ 110 KPa | - Measuring and Alarm Range: 0~250bpm | ||||||
| Transportation and Storage Environment | - Resolution: 1bpm | ||||||
| - Temperature: -20℃～50℃ | - Accuracy: ± 2% or ± 2 bpm, whichever is greater | ||||||
| - Humidity: 10%～90% (non-condensing) | Nellcor SpO₂ (option) | ||||||
| - Atmosphere pressure: 86 KPa ~ 110 KPa | - Measurement Range: 0 ~ 100 % | ||||||
| Safety: | - Resolution: 1 % | ||||||
| - IEC60601-1 Approved, CE marking according to MDD93/42/EEC | - Accuracy: 70% ~ 100%, ±2 % (adult) | ||||||
| - With reference to RoHS Directive 2011/65/EU recasting | 70% ~ 100%, ±3 % (Neonate) | ||||||
| Performance: | 70% ~ 100%, ±2 % (Low Perfusion) | ||||||
| NIBP | 0% ~ 69%, unspecified | ||||||
| - Method: Oscillometric | PR | ||||||
| - Measure mode: Manual, Auto, STAT | - Measurement range: 20 ~ 300 | ||||||
| - Measure Interval in AUTO Mode: 1,2,3,4,5,10,15,30,60,90,120,180,240 min | - Resolution: 1bpm | ||||||
| - Accuracy: 20 ~ 250 bpm, ±3 bpm | |||||||
| * Specifications subject to change without prior notice. | 251~ 300 bpm, unspecified | ||||||
Configuration
Feature | SpO2/ | NIBP | Nellcor | Trolley/ Wall Mount | Printer | Central |
| VS900-I | √ | × | Opt | Opt | × | × |
| VS900-II | √ | √ | Opt | Opt | × | × |
