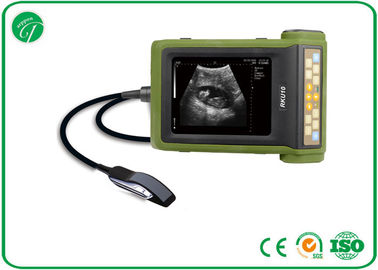

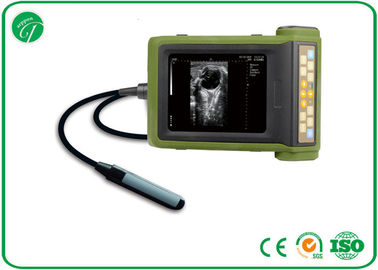

High Brightness LED Diagnostic Vet Ultrasound Machine 10.8'' 1 Probe Connection USB Ports

High Brightness LED Diagnostic Vet Ultrasound Machine 10.8'' 1 Probe Connection USB

Tech Specification

---adopt 5’7 high resolution LED display, with high brightness, high contrast, wide viewing angle, suitable for outdoor use

---English language

---single probe socket, auto identify probe

---Body mark:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body mark with probe director

---Display mode:B,2B,4B ,B/M,M

---Gain:0～127dB

---Contrast:27～90dB

---Gray:256

---Focus: 1,2,3,4

---Magnification:0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.0

---Multi frequency:4 different frequencies of each probe

---Depth: 8 steps, 240mm,

---Frame correlation:0,1,2,3

---IP:0,1,2,3

---IE:0,1,2,3

---Character brightness:select between160,192,224,255

---Key sound: on/off

---compressing curve:7 kinds

FUNCTIONS

---Local zooming

---Depth hoist

---Image up/down, left/right, black/white

---Pseudo color: 8 kinds

---Four different angles / switchable width ；

---100 frames permanent storage

---Cine loop:256 frames

---Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.

---the gravel software package with real-time position line measurement

---Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.

---Cardio measurement:Depth, slope, heart rate, cycle；

---OB measurement:Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth

---Back-fat and lean automatic calculation function；

---OB Report；

---USB port for large capacity storage ( file management, software upgrade, one-key storage),and laser color printer to print image & report；

--- With green energy-saving function

---Grid measurement:6 different(none,point grid,line grid, 10mm point ruler, 2mm point ruler, 10mm&2mm point ruler)

---Video output:ＰＡＬ/ＮＴＳＣ

---Power supply:AC110/230 -15％～＋10％, 60/50Hz±1Hz；

---Battery:large capacity(5200MAh) battery 1PC, more than 6 hours work

---N.W.:1.1kg；

---Dimension:212×154×58mm(L×W×H)

Standard configuration

----main unit: 1 PC

----6.5MHz linear rectal probe: 1 PC

----power supply adapter:1PC

----internal battery:1PC

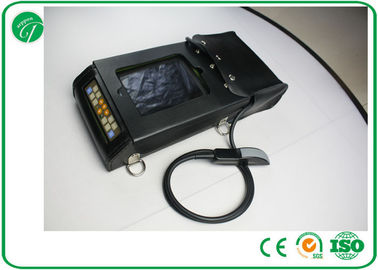

----leather case:1PC

----base charger, neck-belt, sunshine cover, silica gel cover, plastic sealed case

Optional Configuration

1. 4.0MHz convex rectal probe

2. 6.5MHz micro-convex small animal probe

3. 3.5MHz convex probe

4. 6.5MHz extra-cavity probe

5. 7.5MHz linear probe

6. 3.5MHz micro-convex cardio probe

7. Thermal printer (MITSUBISHI P93W)

8. extra battery(5200mAH)

9. Laser color printer(HP Color LaserJet CP1515n,HP Color LaserJet CP1525n)
