Vet Ultrasound / Mini Veterinary Ultrasound Diagnostic Machine For Swine / Dog

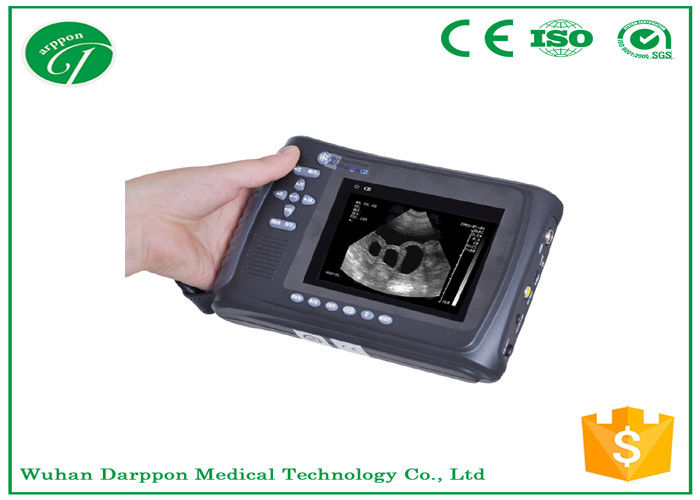

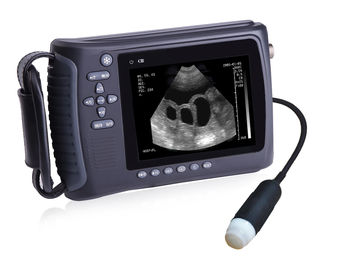

Large Image : Vet Ultrasound / Mini Veterinary Ultrasound Diagnostic Machine For Swine / Dog

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	2018V

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Probe:	3.5Mhz Sector Probe	Bag:	Wrap Bag
Instructions:	Manual/ Technical Instructions	Displayed Depth(mm):	192
Monitor Size:	5.0 TFT-LCD	Display Mode:	B, B+B, B+M, M, 4B
Image Gray Scale:	256	Scan Depth:	120mm-190mm
Image Process:	Histogram, Color Encode, Gama, Image Smooth	Battery Capacity:	2200mAh
Highlight:	Animal Ultrasound Machine , Livestock Ultrasound Machine

vet ultrasound & mini veterinary ultrasound diagnostic machine 2018V

Range of application:
Main suitable for swine, dog and etc.

Brief introduction:
This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.

Standard Configuration:
•Main unit
•3.5Mhz sector probe
•Wrap bag
•Protective box
•Manual/ technical instructions
•Power adapter(containing powder cord)
Optional:
•5.0Mhz waterproof sector probe
•Video printer
•Li-ion battery
•Car charger
•Charging adaptation wire
Vet Ultrasound / Mini Veterinary Ultrasound Diagnostic Machine For Swine / Dog

Probes		3.5Mhz sector probe	5.0Mhz sector probe
Displayed Depth(mm)		192	192
Maximal detect depth(mm)		≥140	≥80
Resolution/mm	Lateral	≤4 (depth≤80) ≤5 (80	≤3 (depth≤60)
	Axial	≤2 (depth≤80)	≤1 (depth≤60)
Blind zone(mm)		≤8	≤8
Geometric position precision	Horizontal	≤20	≤15
	Vertical	≤10	≤10
Monitor size		5.0 TFT-LCD
Display mode		B, B+B, B+M, M, 4B
Image gray scale		256
Scan depth		120mm-190mm
Image process		Histogram, color encode, gama, image smooth
Battery capacity		2200mAh
Measurement		Distance, circumference, area, volume, heart rate, gestation age
Notation		Date, time, name, sex, age, full screen words edit and etc.
Output report		Measurement
Output		USB2.0, VIDEO( PALD, NTSC)
Battery continuous work		≥3 hours
Machine size		230mm(L)x120mm(W)x38mm(H)
Net weight		800G
