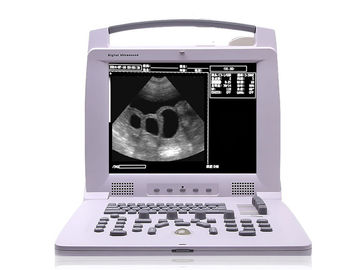

Small Animal Vet Ultrasound Machine With 5 Inch TFT LCD Monitor 120mm-220mm Scan Depth

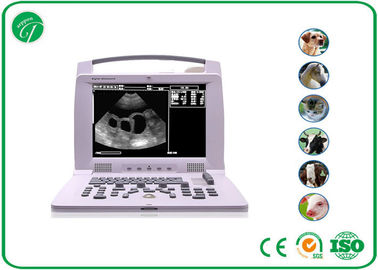

Large Image : Small Animal Vet Ultrasound Machine With 5 Inch TFT LCD Monitor 120mm-220mm Scan Depth

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018VP

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Probe Frequency:	2.5Mhz-8.5Mhz	Monitor Size:	12 Inch
Image Gray Scale:	256	Vices Brand Name:	Darppon
Displayed Depth(mm):	192	Probe Elements:	96
Display Mode:	B, B+B, B+M, M, 4B	Scan Depth:	120mm-220mm
Model Number:	3018VP	Mainly Application:	Swine , Sheep , Alpaca , Dog , Cat , Rabbit
High Light:	Animal Ultrasound Machine , Livestock Ultrasound Machine

Small Animal Vet Ultrasound Machine With 5 Inch TFT LCD Monitor 120mm-220mm Scan Depth

Application:

Mainly Application : swine , sheep , alpaca , dog , cat , rabbit and etc .

Feature:

This equipment is convex linear ultrasound scanning diagnostic system with high resolution. It applies micro-computer control and digital scan converter (DSC), digital beam-forming(DBF),real time dynamic aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving focusing(DRF),digital frequency scan (DFS), 8 segments digital TGC, guide cannula puncture, frame correlation technologies to endue its image with clarity, stabilityand high resolution.

Specifications:

Monitor size: 12 inch
Probe frequency: 2.5Mhz-8.5Mhz
Probe elements : 96
2- probe connectors
Displayed Depth(mm): 240(max.), 16 levels adjustable
Detect depth(mm): ≥60
Resolution(mm): Lateral, ≤2(depth≤80), ≤3(80＜depth≤130); Axial, ≤2(depth≤80), ≤3(80＜depth≤130)
Blind zone(mm): ≤7
Geometric position precision: Horizontal≤15; Vertical≤10
Display mode: B, B+B, B+M, M, 4B
Image storage: 32
Image gray scale: 256
Scan depth: 40mm-240mm
Cine loop: 809 frame (max.)
Posture mark: ≥40
Dynamic range: 100dB-130dB
Image flip: up/down, right/left, black/white
Scan angle: adjustable
Focus position: adjustable
Focal space: 5 level
Measurement: distance, circumference, area, volume, heart rate, gestation age, EDD
Notation: date, time, name, sex, age, full screen words edit and etc.
Output report: 2 type
Output: PALD, NTSC
Power Supply: AV220V±22V, 50MHz±1MHz;
Machine dimension (mm): 320*165*290
N.W: 6KG

Displayed Depth(mm)	192
Detect depth(mm)	≥80
Resolution(mm)	Lateral, ≤3(depth≤80), ≤5(80
Blind zone(mm)	≤6
Geometric position precision	Horizontal≤7.5; Vertical≤5
Monitor size	5.0” TFT-LCD
Display mode	B, B+B, B+M, M, 4B
Image storage	128
Image gray scale	256
Scan depth	120mm-220mm
Cine loop	≥400 frame
Posture mark	15
Focus position	adjustable
Probe frequency	adjustable (3 point each probe)
Frame correction	adjustable
Image flip	up/down, left/right
Image process	histogram, color encode, gama, image smooth
Measurement	distance, circumference, area, volume, heart rate, gestation age, EDD
Notation	date, time, name, sex, age, full screen words edit and etc.
Output report	regular
Output	USB2.0, VIDEO( PALD, NTSC)
Machine size	230mm(L) x 120mm(W) x 38mm(H)
N.W	700G
Battery continuous work	≥3 hours

Standard Configuration:

. Scanner Body: 1pc
. Li-ion Battery: 1pc
. 3.5MHz Convex Probe: 1pc
. Charger with a Set of Wires: 1set
. Wrap Bag: 1pc
. CD: 1pc
. Bottle of USG gel: 1pc
. Transportation Case: 1pc
. User Manual: 1pc

Optional:

. 5.0MHz Micro-convex Probe
. 6.5MHz Rectal Probe
. 7.5MHz Linear Probe
. Backfat Probe
. Goggle
