Linear / Convex Probe Vet Ultrasound Diagnostic Equipment For Ovine , Bovine , Equine

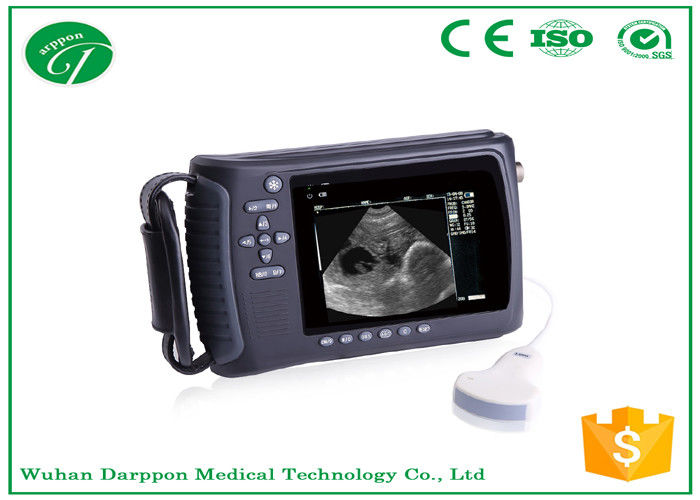

Large Image : Linear / Convex Probe Vet Ultrasound Diagnostic Equipment For Ovine , Bovine , Equine

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018V

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Detect Depth:	≥140	Blind Zone(mm):	≤3
Monitor Size:	5 Inch	Display Mode:	B, B+B, B+M, M, 4B
Image Gray Scale:	256	Image Storage:	128
Cine Loop:	≥400 Frame	Scan Depth:	120mm-220mm
Image Flip:	Up/down, Left/right	Focus Position:	Adjustable
Highlight:	Animal Ultrasound Machine , Livestock Ultrasound Machine

linear/convex probe Vet Ultrasound/Veterinary Products/ Diagnostic Equipment for Ovine, Bovine, Equine

Applications:
Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Brief introduction:
This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.

Specifications:

Detect Depth(mm)	≥140
Blind zone(mm)	≤3
Monitor size	5 inch
Display mode	B, B+B, B+M, M, 4B
Image gray scale	256
Image storage	128
Cine loop	≥400 frame
Scan depth	120mm-220mm
Image flip	up/down, left/right
Focus position	Adjustable
Posture mark	15
Image process	Histogram, color encode, gama, image smooth
Probe frequency	Adjustable ( 3 point each probe )
Frame correction	Adjustable
Measurement	distance, circumference, heart rate, EDD, area, volume, GA and etc.
Notation: date	time, name, sex, age, full screen words edit and etc.
Output report	regular
Output	USB2.0, VIDEO( PALD, NTSC)
Charging method	adapter, battery
Adapter rating	100-240V~, 50-60Hz, 70VA
Battery	2600mAh, continuous work: ≥3 hours
Machine size	230mm(L)x120mm(W)x38mm(H)
Net weight	700g

Standard Configuration:
Scanner Body: 1pc
Li-ion Battery: 1pc
3.5MHz Convex Probe: 1pc
Charger with a Set of Wires: 1set
Wrap Bag: 1pc
CD: 1pc
Bottle of USG gel: 1pc
Transportation Case: 1pc
User Manual: 1pc
Optional:
5.0MHz Micro-convex Probe
6.5MHz Rectal Probe
7.5MHz Linear Probe
Video Printer
Li-ion Battery
Car Charger
Charging Adaptation Wire(containing power cord)
