High Resolution Animal Ultrasound Machine 3.5MHz Linear Probe For Eye Muscle

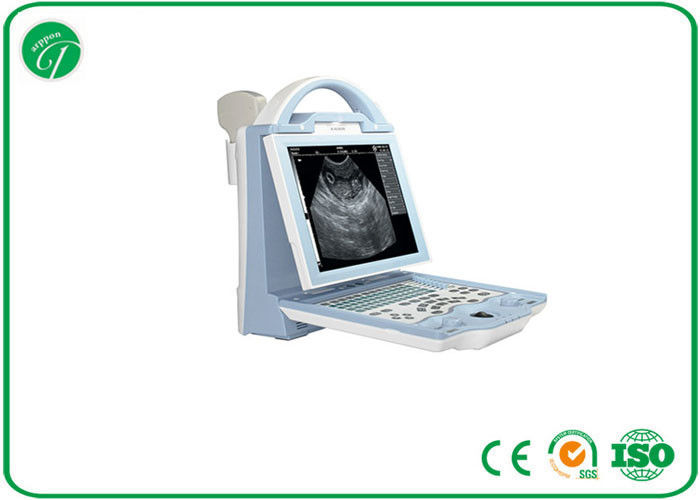

Large Image : High Resolution Animal Ultrasound Machine 3.5MHz Linear Probe For Eye Muscle

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	KX5600

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Type:	Portable Ultrasonic Diagnostic Devices	Place Of Origin:	Hubei, China (Mainland)
Languages:	Spanish, English, French, Russian	Adjustable Depth:	10 Grades, Max Depth To 236mm
Dynamic Scope:	256	Weight:	1.1kg
Probe:	Two Probe Sockets	Gain:	0~127dB
Display:	10.4' High Resolution Color LED	Display Mode:	B,2B,4B ,B/M,M
Contrast:	27~90dB
Highlight:	Livestock Ultrasound Machine , Veterinary Portable Ultrasound

High Resolution Animal Ultrasound Machine 3.5MHz Linear Probe For Eye Muscle

Tech Parameters:

10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
Two probe sockets, auto-identify different optional probe;
Body marks:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body marks indicating probe position;
Display mode:B,2B,4B ,B/M,M ;
Adjustable depth: 10 grades, max depth to 236mm;

Li-battery	HYLB-1614 11.1V-4400mAh 48.84Wh
probe	Two probe sockets
Main unit dimension	256×150×326mm(L×W×H);
Main unit weight	4.5kg(without accessories);
Power supply adaptor output	DC12.8V 3.0A;
Power supply	100-240V~ 1.2-0.6A frequency:50-60Hz;
Dual TV output	PAL/NTSC, can connect video printer when necessary;
Cine loop	256 frames;
Image storage	4G hard disk to permanently store about 5000 frames images;
Contrast	27~90dB;

Optional parts:

Optional probes
4.0MHz convex rectal probe
6.5MHz micro-convex probe for small animals
3.5MHz linear probe for eye muscle
3.5MHz convex probe
7.5MHz linear probe
Battery charger
trolley
Video printer(UP-897MD)
Ethernet Switch
