Product Details:
Payment & Shipping Terms:
|
| Detect Depth(mm): | 70-170mm | Blind Zone(mm): | ≤3 |
|---|---|---|---|
| Geometric Position Precision: | Horizontal≤5; Vertical≤5 | Monitor Size: | 5.8"TFT |
| Display Mode: | B, B+B, B+M, M, 4B | Image Gray Scale: | 256 |
| Probe: | Linear Back Fat 2.5/3.5/5MHz | N.W: | 600G |
| Highlight: | Livestock Ultrasound Machine,Veterinary Portable Ultrasound |
||
Linear Electronic Portable Veterinary Ultrasound , Livestock Ultrasound Machine LCD Monitor
Application
What’s new

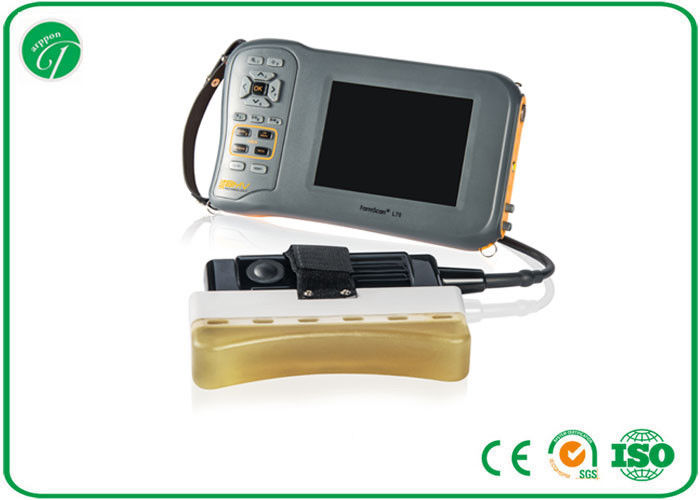

BMV Technology Co., Ltd announces thatFarmScan® L70, the Second Generation ultrasound Long Linear Probe for Back-fact is released now.
FarmScan® L70 back-fat scanner fits with an 150mm,3.5Mhz Linear array transducer and probe standoff, the best to measure the diameter of the loin and the measurement of backfat and loin in a single image, all measured in tenths of a millimeter.

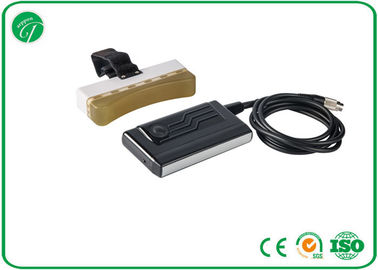

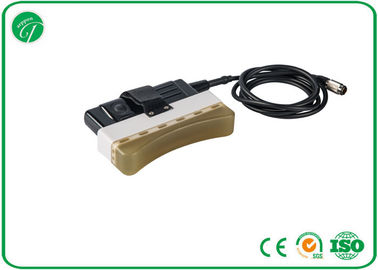

PROBE:
Specific designed linear probe 155 mm long to measure back-fat, perimeter and area of loin. It has a large image resolution and precision in tenths of mm
Standoff for measurement of perimeter and area of loin
This standoff is necessary for full display of loin eye in a transverse exploration, to perform the perimeter and area measurement.
[Specification]
| Scanning method | Linear Electronic |
| Probe | Linear Back Fat 2.5/3.5/5MHz |
| Monitor | 5.8 LCD |
| Battery | 2800mAh,working time up to 4.5 hours |
| Gain | Near, far and total gain |
| Grey shades | 256 levels |
| Main measurements | Distance, perimeter, area and volume |
| Cine loop | 516 frames |
| Focal points | 2 adjustable electronic focusing |

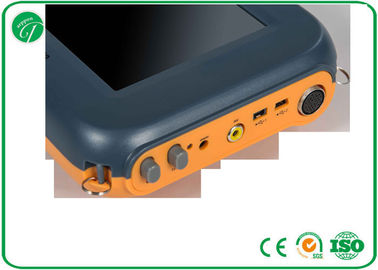

| Video output | Video output and 2*USB ports |
| Scanning depth | 70—170 mm |
Specification for BackFat probe:
150 mm length, 96 crystal elements ; Resolution: ≤1(depth≤80)；≤2(80＜depth≤130)
